SKU: 16B-2-SNX-NO30-RENOLD
Renold SYNO 16B-2-NO30 BS Duplex Chain Double Cranked Link 1 inch Pitch
Renold SYNO 16B-2-NO30 BS Duplex Chain Double Cranked Link 1 inch Pitch
Regular price
CHF 149.00
ex VAT
Regular price
Sale price
CHF 149.00
ex VAT
In stock
Price Break
2+
CHF 118.03
5+
CHF 111.40
10+
CHF 110.08
29+
CHF 108.75
49+
CHF 107.42
75+
CHF 106.10
100+
CHF 99.47
200+
CHF 98.14
250+
CHF 96.81
500+
CHF 95.49
1000+
CHF 92.83
Description
Description

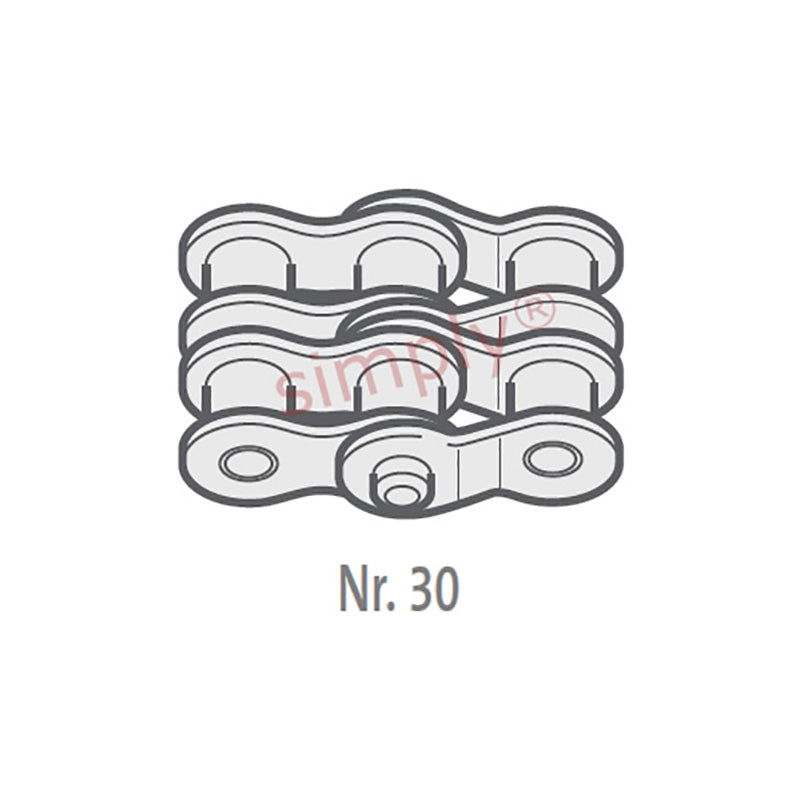

| Renold No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 3.76mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H2) | 66.8mm |
| Connecting Link Extension max (J) | 2.2mm |
| Transverse Pitch nom (K) | mm |
| ISO606 Tensile Strength min | 106000 N |
| Weight | 0.046kg/m |
