SKU: 16B-3-SD-NO26-RENOLD
Renold SD 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Renold SD 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
CHF 16.37
ex VAT
Regular price
Sale price
CHF 16.37
ex VAT
In stock
Price Break
10+
CHF 14.57
19+
CHF 13.75
29+
CHF 13.59
39+
CHF 13.42
49+
CHF 13.26
74+
CHF 13.10
99+
CHF 12.28
199+
CHF 12.11
249+
CHF 11.95
499+
CHF 11.79
999+
CHF 11.46
Couldn't load pickup availability
Description
Description

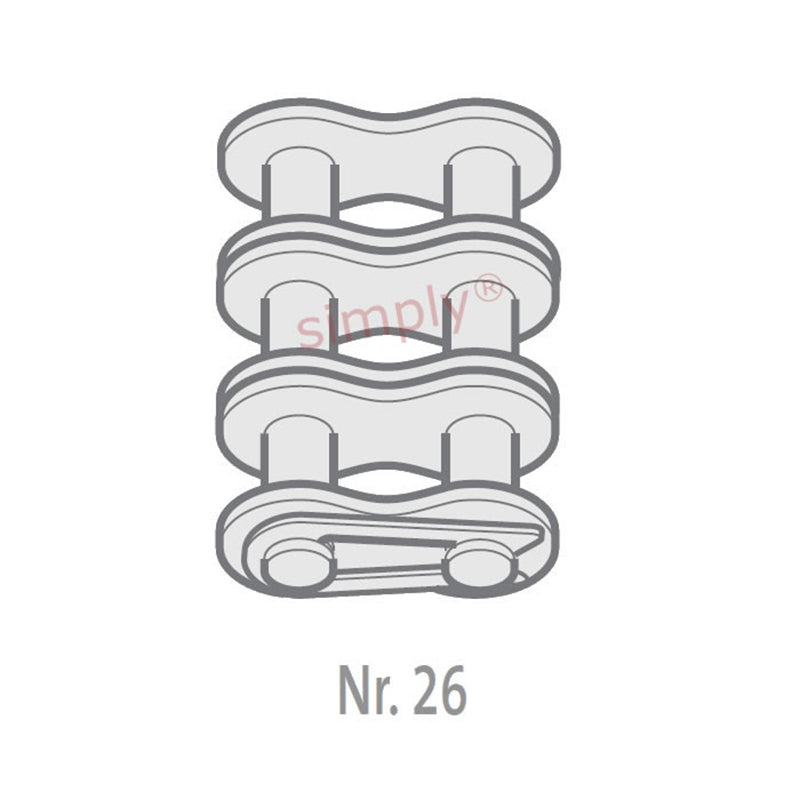

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 103.2mm |
| Connecting Link Extension max (J) | 3.60000000000001mm |
| ISO606 Tensile Strength min | 173000 N |
| Weight | 0.113kg/m |
