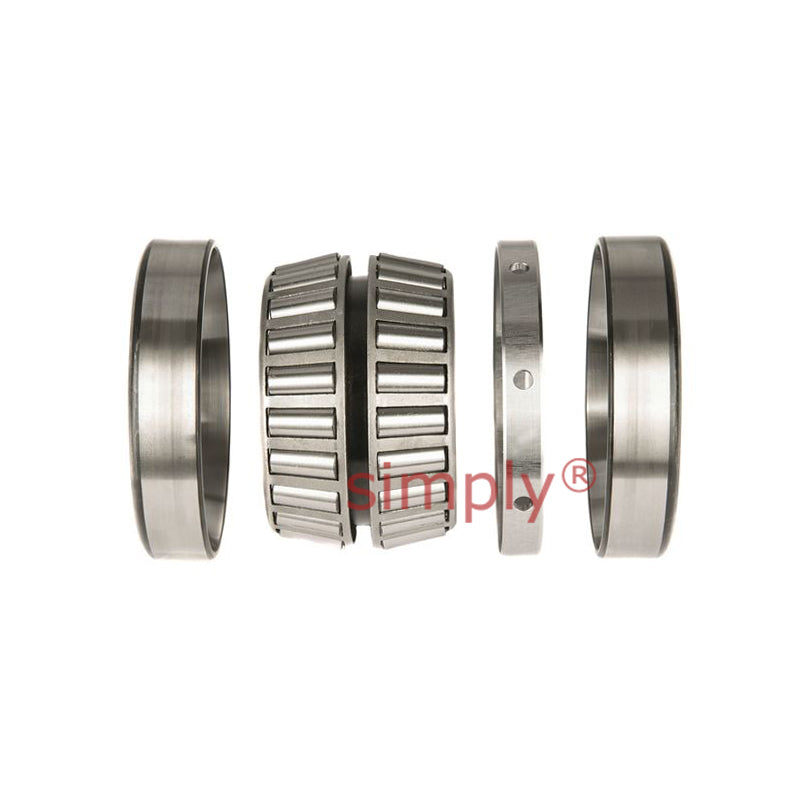

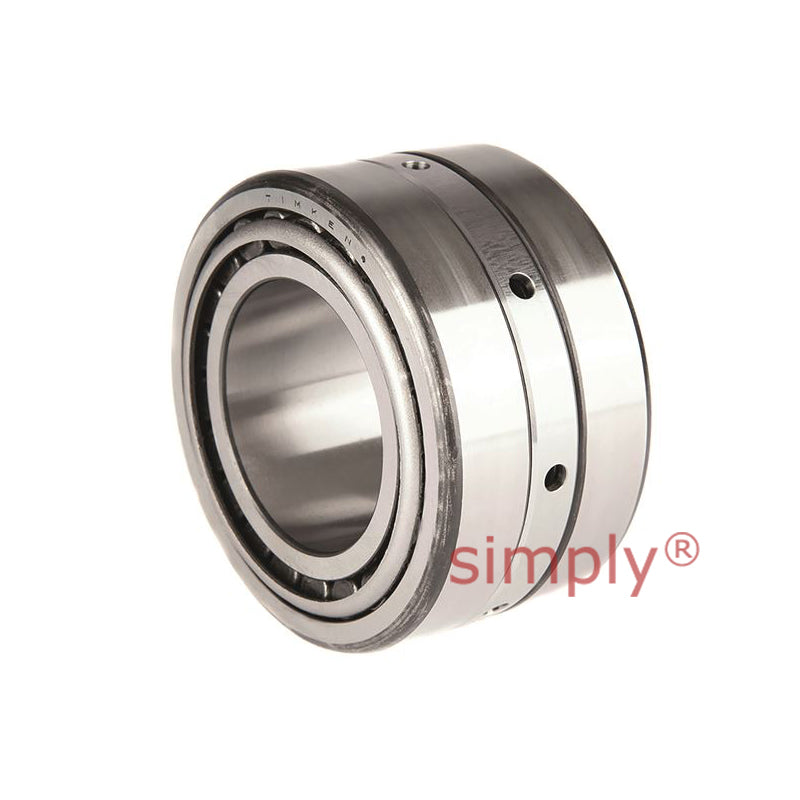

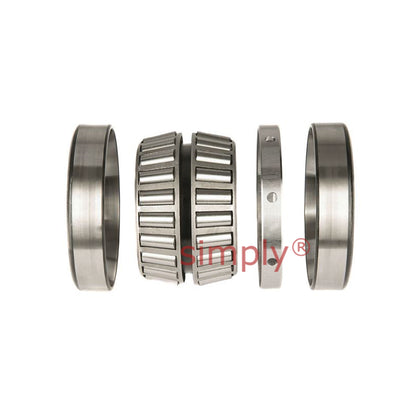

Timken 19145D/19268 TDI Double Inner Race Taper Roller Bearing 1.4375x2.6875x1.4492x1.5 inch
Timken 19145D/19268 TDI Double Inner Race Taper Roller Bearing 1.4375x2.6875x1.4492x1.5 inch
Regular price
CHF 427.00
ex VAT
Regular price
Sale price
CHF 427.00
ex VAT
In stock
Price Break
10+
CHF 339.91
20+
CHF 320.81
30+
CHF 317.00
40+
CHF 313.18
50+
CHF 309.36
75+
CHF 305.54
100+
CHF 286.44
200+
CHF 282.62
250+
CHF 278.80
500+
CHF 274.98
1000+
CHF 267.35
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 68.26mm = 2.687 (2-11/16) inch
- Width:
- 36.81mm = 1.449 inch
Technical
Technical
| d | 36.512mm = 1.4375 inch |
|---|---|
| D | 68.262mm = 2.6875 inch |
| T | 36.81mm = 1.4492 inch |
| C | 38.1mm = 1.5 inch |
| Dynamic (1) C1 | 81700N |
| Factors (5) e | 0.44 |
| Factors (5) Y2 | 2.26 |
| Dynamic (2) C90 | 12200N |
| Dynamic (2) Ca90 | 9260N |
| Dynamic (2) C90(2) | 21200N |
| Factors (5) K | 1.31 |
| Shaft max shaft fillet radius R (3) | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | 42.5mm = 1.67 inch |
| Housing max shaft fillet radius r (3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Db | 61mm = 2.4 inch |
| G1 | 17.5 |
| G2 | 11.5 |
| Cg | 0.0694 |
