SKU: 201-NPP-B-INA

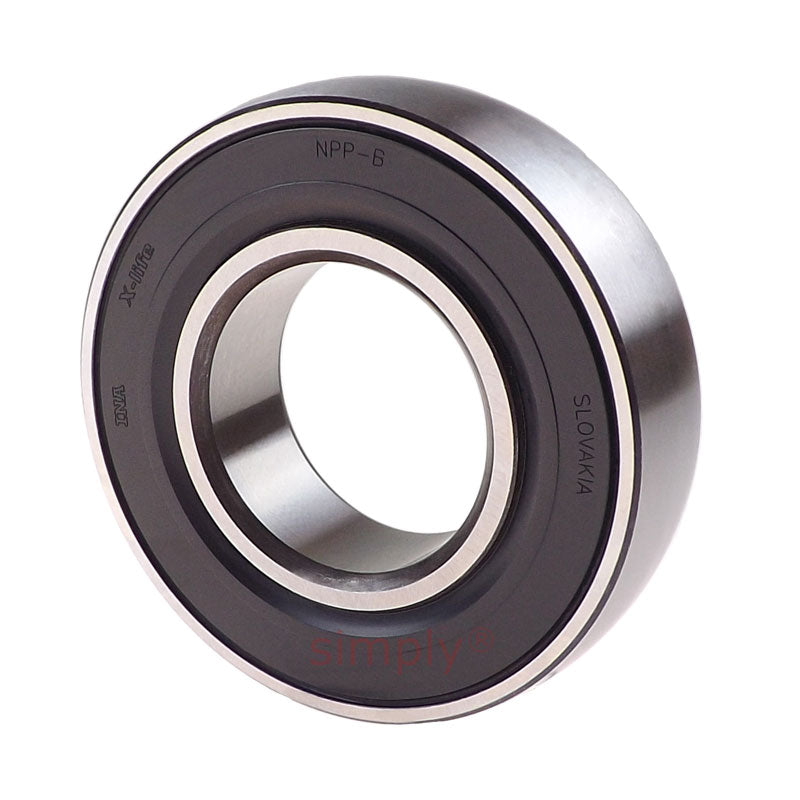

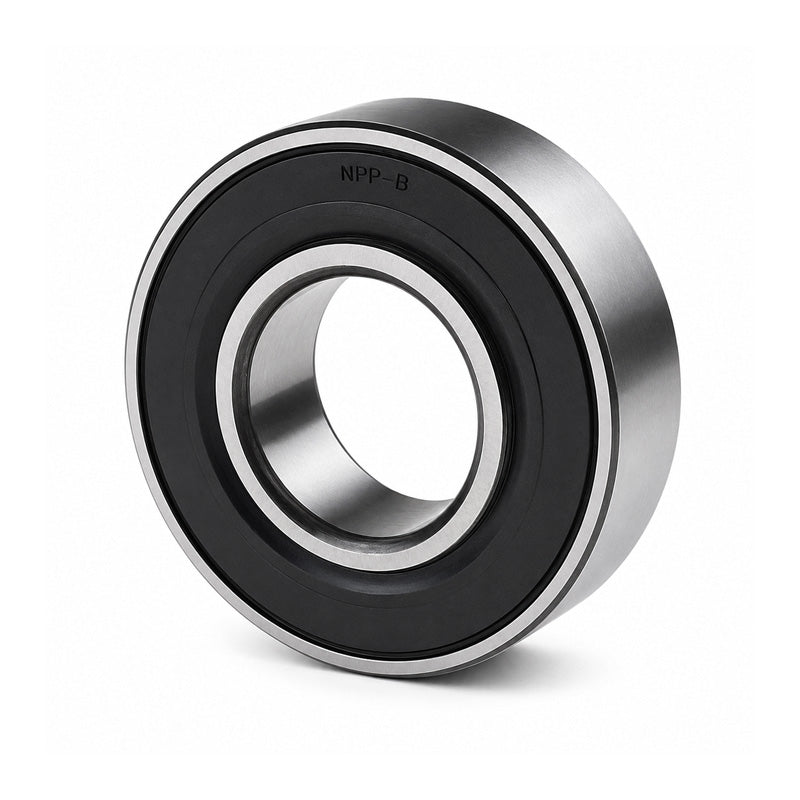

INA 201XLNPPB Metric Spherical Outer Deep Groove Ball Bearing with R Seals 12x32x10mm
INA 201XLNPPB Metric Spherical Outer Deep Groove Ball Bearing with R Seals 12x32x10mm
Regular price
CHF 23.00
ex VAT
Regular price
Sale price
CHF 23.00
ex VAT
Equivalent to: 201NPPU CS201 17262012RS
In stock
Price Break
3+
CHF 18.27
5+
CHF 17.25
10+
CHF 17.04
15+
CHF 16.83
20+
CHF 16.63
30+
CHF 16.42
40+
CHF 15.40
50+
CHF 15.19
60+
CHF 14.99
75+
CHF 14.78
100+
CHF 14.37
Description
Description
|
INA 2..-NPP-B Series Inserts: Bearing insert with spherical outer race and R seals. Bearings with a fit on the shaft allow speeds equivalent to those of standard ball bearings, are suitable for bearing arrangements with an alternating direction of rotation and offer smooth running. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
Equivalent: 201NPPU CS201 17262012RS
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 12mm |
|---|---|
| Dsp | 32mm |
| B | 10mm |
| d2 | 17.1mm |
| r min | 0.6mm |
| Limiting speed nG Fett | 18300 rpm |
| Dynamic load Cr | 6800 N |
| Static load C0r | 3050 N |
| Weight | 0.04 kg |
