SKU: 20204-TVP-MB

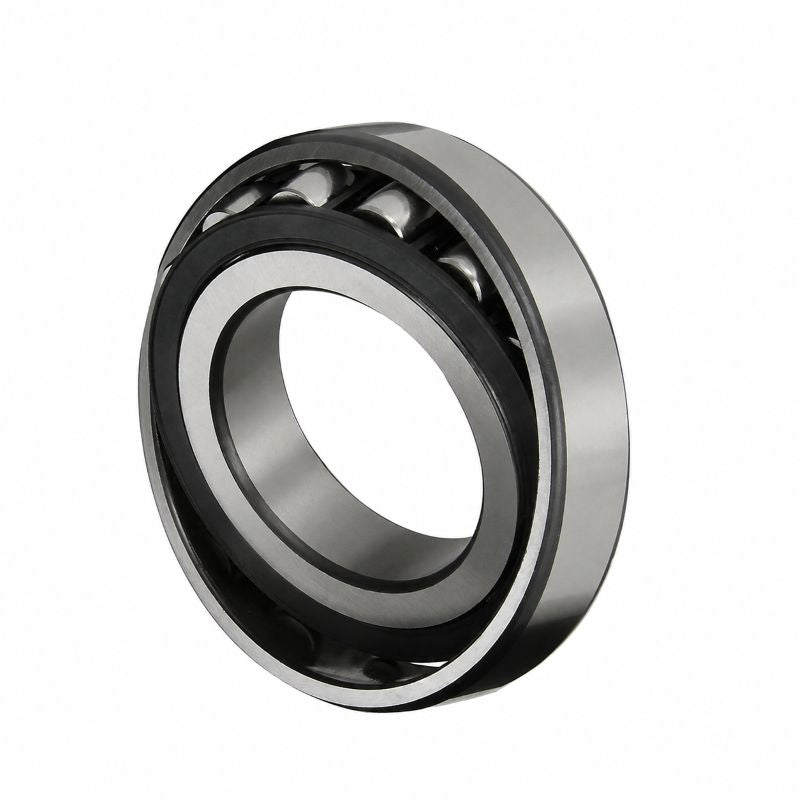

20204TVP Barrel Roller Bearing with Cylindrical Bore 20x47x14mm - Allow 2-3 Days
20204TVP Barrel Roller Bearing with Cylindrical Bore 20x47x14mm - Allow 2-3 Days
Regular price
CHF 112.00
ex VAT
Regular price
Sale price
CHF 112.00
ex VAT
In stock
Price Break
3+
CHF 89.07
4+
CHF 84.07
9+
CHF 83.07
19+
CHF 82.07
29+
CHF 81.07
39+
CHF 80.07
49+
CHF 75.06
59+
CHF 74.06
249+
CHF 73.06
499+
CHF 72.06
999+
CHF 70.06
Description
Description
|

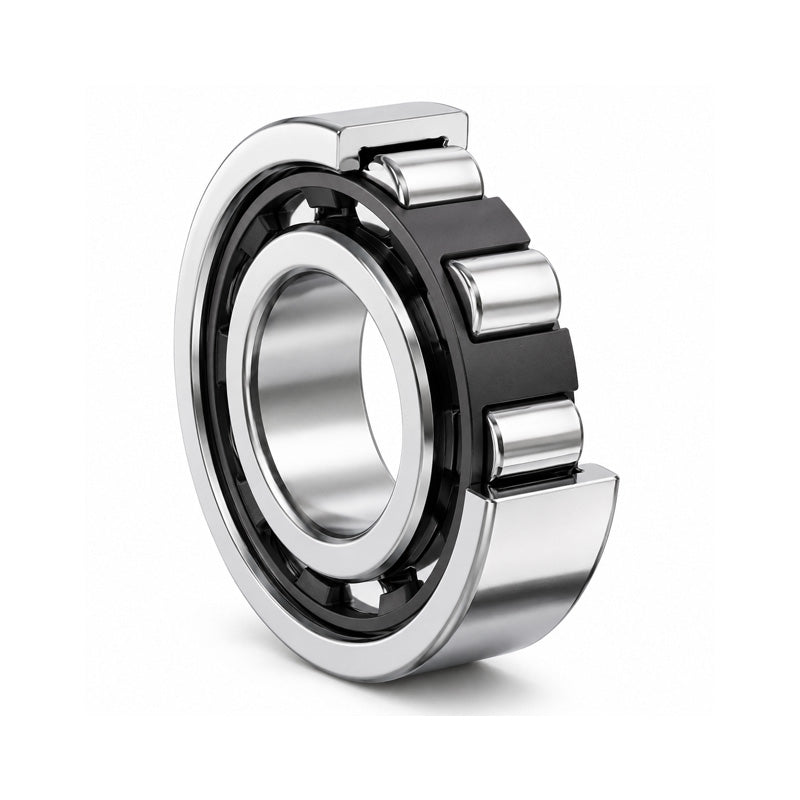

Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| r min | 1mm |
| D1 | 39mm |
| da min | 25.6mm |
| Da max | 41.4mm |
| ra max | 1mm |
| Dynamic Load Cr | 20400 N |
| Static Load C0r | 19300 N |
| Fatigue limit load Cur | 1700 N |
| Limiting speed nG | 7500 rpm |
| Weight | 1.114 kg |
