SKU: 20217-MB-MB

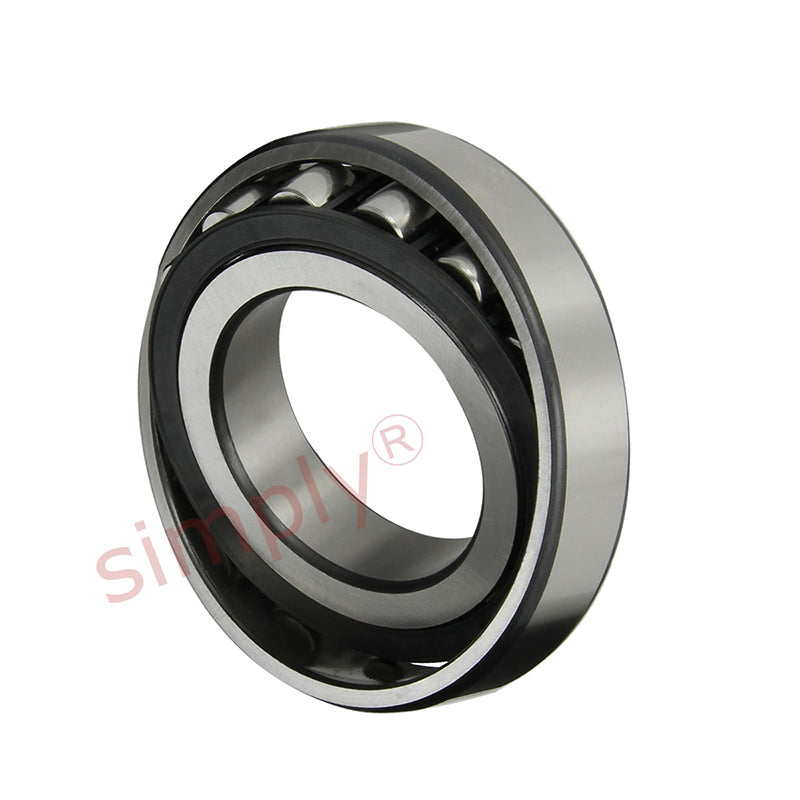

20217MB Barrel Roller Bearing with Cylindrical Bore 85x150x28mm - Allow 2-3 Days
20217MB Barrel Roller Bearing with Cylindrical Bore 85x150x28mm - Allow 2-3 Days
Regular price
CHF 349.00
ex VAT
Regular price
Sale price
CHF 349.00
ex VAT
In stock
Price Break
3+
CHF 277.19
4+
CHF 261.62
9+
CHF 258.51
19+
CHF 255.39
29+
CHF 252.28
39+
CHF 249.16
49+
CHF 233.59
59+
CHF 230.47
249+
CHF 227.36
499+
CHF 224.25
999+
CHF 218.02
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Width:
- 28mm
- Clearance:
- * Standard
Technical
Technical
| d | 85mm |
|---|---|
| D | 150mm |
| B | 28mm |
| r min | 2mm |
| D1 | 133.9mm |
| da min | 96mm |
| Da max | 139mm |
| ra max | 2mm |
| Dynamic Load Cr | 156000 N |
| Static Load C0r | 200000 N |
| Fatigue limit load Cur | 20400 N |
| Limiting speed nG | 2400 rpm |
| Weight | 2.22 kg |
