SKU: 20220-MB-MB

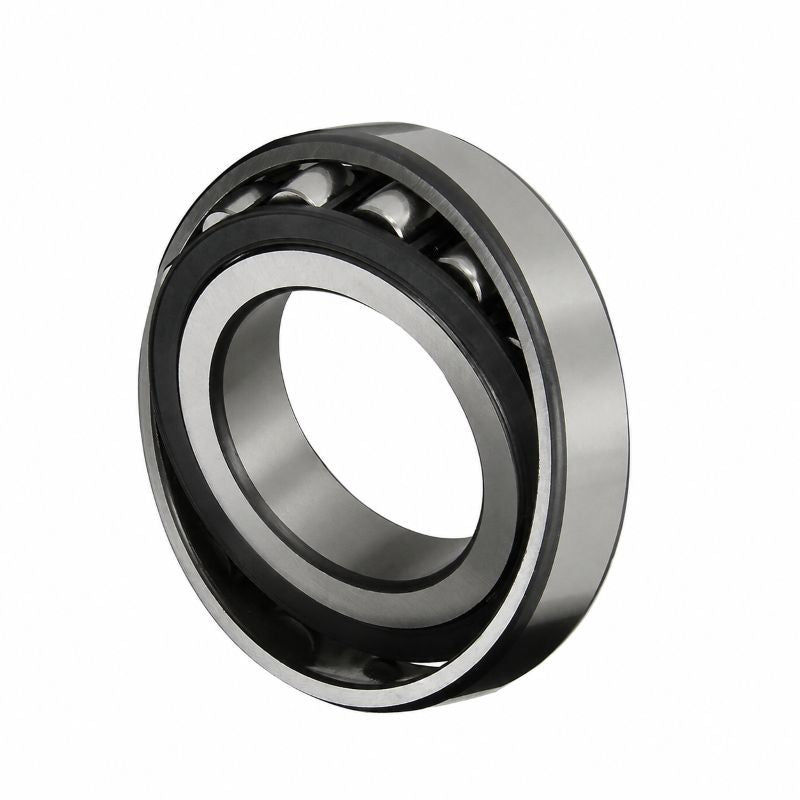

20220MB Barrel Roller Bearing with Cylindrical Bore 100x180x34mm - Allow 2-3 Days
20220MB Barrel Roller Bearing with Cylindrical Bore 100x180x34mm - Allow 2-3 Days
Regular price
CHF 538.00
ex VAT
Regular price
Sale price
CHF 538.00
ex VAT
In stock
Price Break
3+
CHF 428.63
4+
CHF 404.55
9+
CHF 399.74
19+
CHF 394.92
29+
CHF 390.11
39+
CHF 385.29
49+
CHF 361.21
59+
CHF 356.39
249+
CHF 351.58
499+
CHF 346.76
999+
CHF 337.13
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 34mm
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 180mm |
| B | 34mm |
| r min | 2.1mm |
| D1 | 160.8mm |
| da min | 112mm |
| Da max | 168mm |
| ra max | 2.1mm |
| Dynamic Load Cr | 224000 N |
| Static Load C0r | 290000 N |
| Fatigue limit load Cur | 28000 N |
| Limiting speed nG | 1900 rpm |
| Weight | 3.96 kg |
