SKU: 20224-K-MB-C3+H3024-MB
20224KMBC3 Barrel Roller Bearing with Taper Bore and H3024 Adaptor Sleeve 110x215x40mm - Allow 2-3 Days
20224KMBC3 Barrel Roller Bearing with Taper Bore and H3024 Adaptor Sleeve 110x215x40mm - Allow 2-3 Days
Regular price
CHF 887.00
ex VAT
Regular price
Sale price
CHF 887.00
ex VAT
In stock
Price Break
3+
CHF 706.27
4+
CHF 666.59
9+
CHF 658.66
19+
CHF 650.72
29+
CHF 642.79
39+
CHF 634.85
49+
CHF 595.17
59+
CHF 587.24
249+
CHF 579.30
499+
CHF 571.37
999+
CHF 555.50
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid brass cage. This bearing is also available with an adaptor sleeve for locating purposes. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C. to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Clearance:
- C3
Technical
Technical

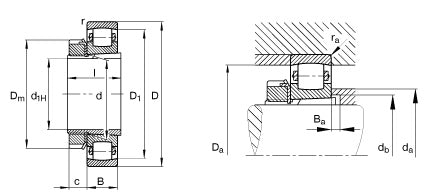

| d1H | 110mm |
|---|---|
| D | 215mm |
| B | 40mm |
| Ba min | 13mm |
| c | 22mm |
| D1 | 191.1mm |
| Da max | 203mm |
| Dm | 145mm |
| d | 120mm |
| da max | 143mm |
| db min | 127mm |
| l | 72mm |
| ra max | 2.1mm |
| r min | 2.1mm |
| Adaptor sleeve | H3024 |
| Dynamic radial load Cr | 305000 N |
| Static radial load C0r | 415000 N |
| Limiting speed nG | 1600 rpm |
| Fatigue limit radial load Cur | 38000 N |
| Weight | 8.52 kg |
