SKU: 20224-K-MB-C3-MB

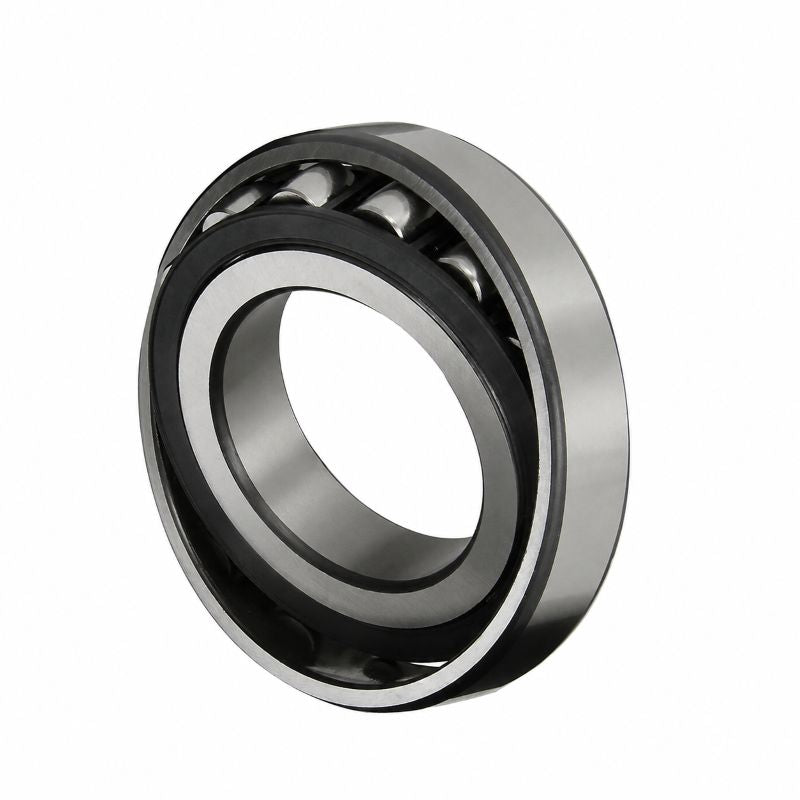

20224KMBC3 Barrel Roller Bearing with Taper Bore 120x215x40mm - Allow 2-3 Days
20224KMBC3 Barrel Roller Bearing with Taper Bore 120x215x40mm - Allow 2-3 Days
Regular price
CHF 798.00
ex VAT
Regular price
Sale price
CHF 798.00
ex VAT
In stock
Price Break
3+
CHF 635.51
4+
CHF 599.81
9+
CHF 592.67
19+
CHF 585.53
29+
CHF 578.39
39+
CHF 571.25
49+
CHF 535.55
59+
CHF 528.40
249+
CHF 521.26
499+
CHF 514.12
999+
CHF 499.84
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Clearance:
- C3
Technical
Technical
| d | 120mm |
|---|---|
| D | 215mm |
| B | 40mm |
| r min | 2.1mm |
| D1 | 191.1mm |
| da min | 132mm |
| Da max | 203mm |
| ra max | 2.1mm |
| Dynamic load Cr | 305000 N |
| Static load C0r | 415000 N |
| Fatigue limit load Cur | 38000 N |
| Limiting speed nG | 1600 rpm |
| Weight | 6.51 kg |
