SKU: 203-NPP-B-INA

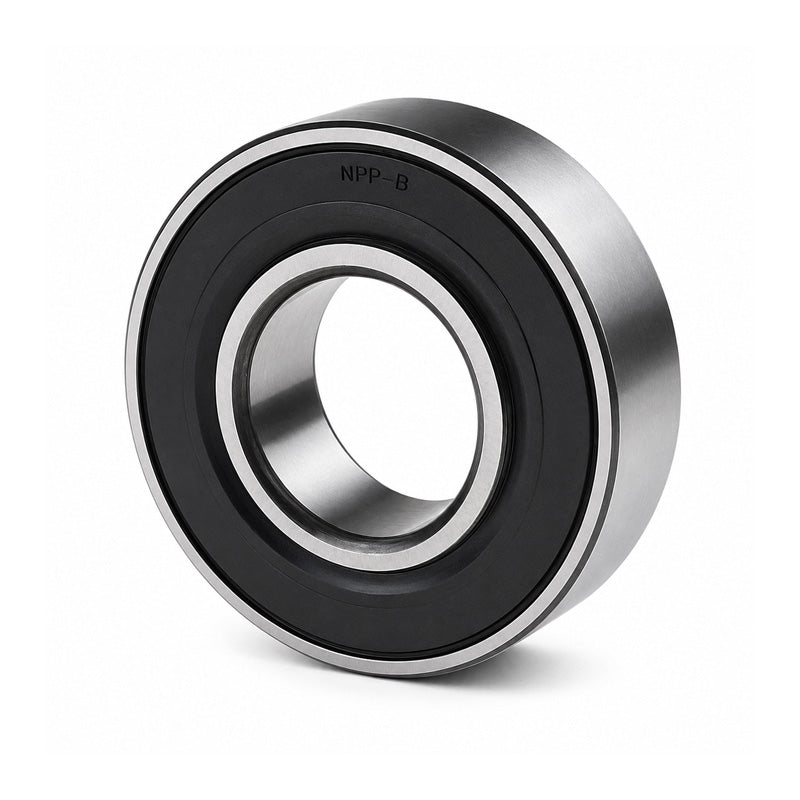

INA 203XLNPPB Metric Spherical Outer Deep Groove Ball Bearing with R Seals 17x40x12mm
INA 203XLNPPB Metric Spherical Outer Deep Groove Ball Bearing with R Seals 17x40x12mm
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
Equivalent to: 203NPPU CS203 17262032RS
In stock
Price Break
3+
CHF 12.72
5+
CHF 12.00
10+
CHF 11.86
15+
CHF 11.72
20+
CHF 11.57
30+
CHF 11.43
40+
CHF 10.72
50+
CHF 10.57
60+
CHF 10.43
75+
CHF 10.29
100+
CHF 10.00
Description
Description
|
INA 2..-NPP-B Series Inserts: Bearing insert with spherical outer race and R seals. Bearings with a fit on the shaft allow speeds equivalent to those of standard ball bearings, are suitable for bearing arrangements with an alternating direction of rotation and offer smooth running. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
Equivalent: 203NPPU CS203 17262032RS
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 17mm |
|---|---|
| Dsp | 40mm |
| B | 12mm |
| d2 | 22.5mm |
| r min | 0.6mm |
| Limiting speed nG Fett | 13000 rpm |
| Dynamic load Cr | 9600 N |
| Static load C0r | 4750 N |
| Weight | 0.06 kg |
