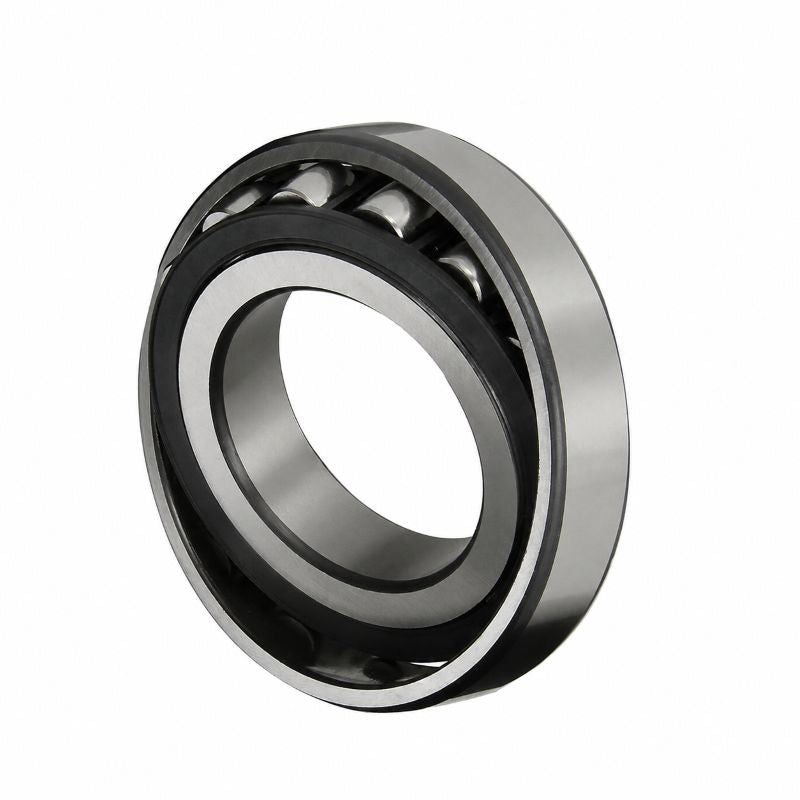

20304TVP Barrel Roller Bearing with Cylindrical Bore 20x52x15mm - Allow 2-3 Days
20304TVP Barrel Roller Bearing with Cylindrical Bore 20x52x15mm - Allow 2-3 Days
Regular price
CHF 124.00
ex VAT
Regular price
Sale price
CHF 124.00
ex VAT
In stock
Price Break
3+
CHF 98.54
4+
CHF 93.00
9+
CHF 91.89
19+
CHF 90.79
29+
CHF 89.68
39+
CHF 88.57
49+
CHF 83.04
59+
CHF 81.93
249+
CHF 80.82
499+
CHF 79.72
999+
CHF 77.50
Description
Description
|

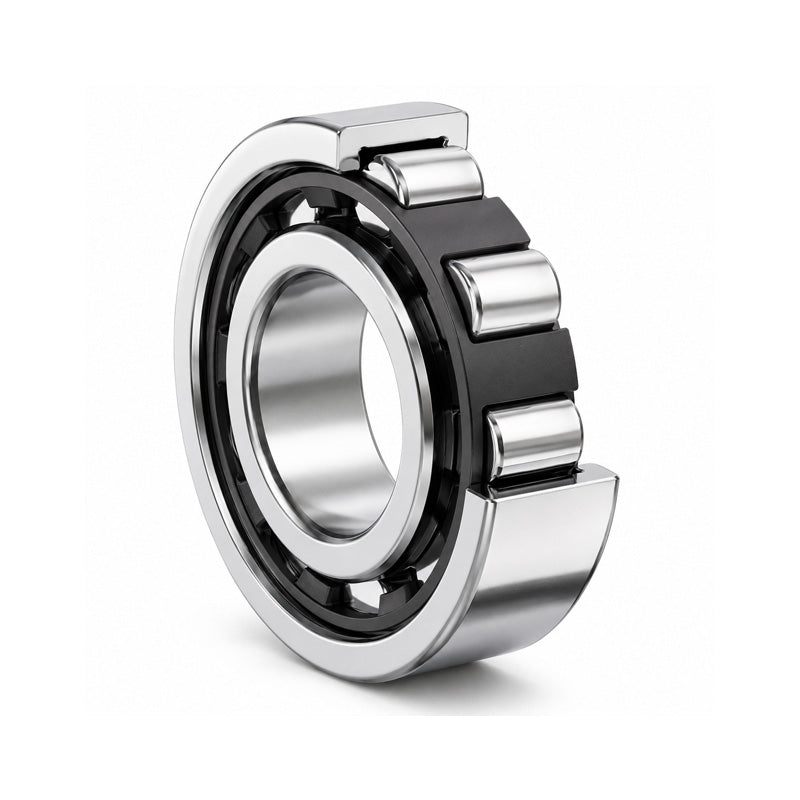

Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| r min | 1.1mm |
| D1 | 43.5mm |
| da min | 27mm |
| Da max | 45mm |
| ra max | 1mm |
| Dynamic Load Cr | 27000 N |
| Static Load C0r | 24500 N |
| Fatigue limit load Cur | 2300 N |
| Limiting speed nG | 7000 rpm |
| Weight | 0.152 kg |
