SKU: 20308-TVP-MB

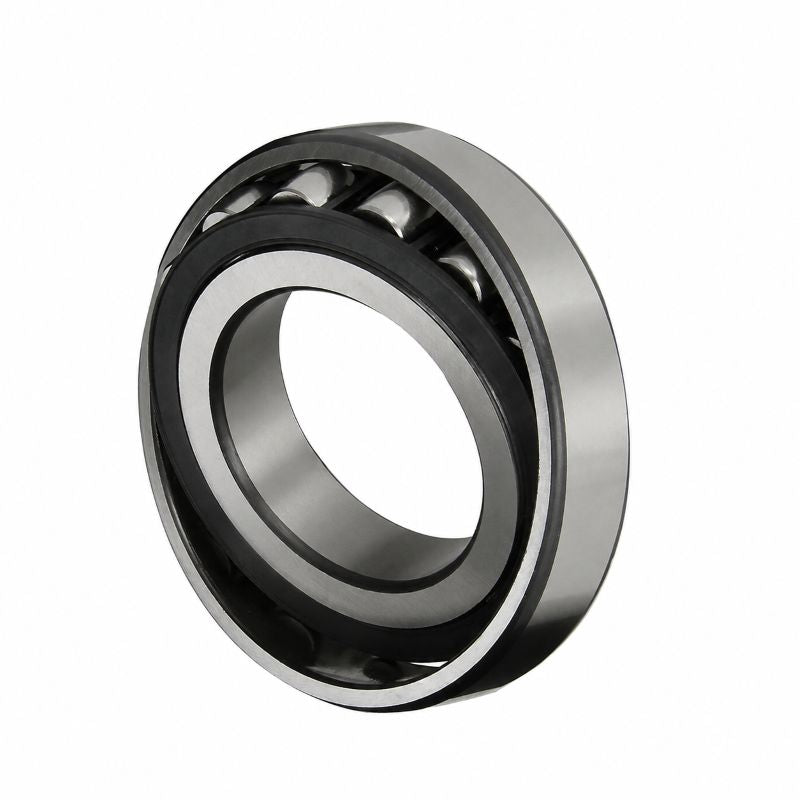

20308TVP Barrel Roller Bearing with Cylindrical Bore 40x90x23mm - Allow 2-3 Days
20308TVP Barrel Roller Bearing with Cylindrical Bore 40x90x23mm - Allow 2-3 Days
Regular price
CHF 177.00
ex VAT
Regular price
Sale price
CHF 177.00
ex VAT
In stock
Price Break
3+
CHF 140.45
4+
CHF 132.56
9+
CHF 130.99
19+
CHF 129.41
29+
CHF 127.83
39+
CHF 126.25
49+
CHF 118.36
59+
CHF 116.78
249+
CHF 115.20
499+
CHF 113.63
999+
CHF 110.47
Description
Description
|

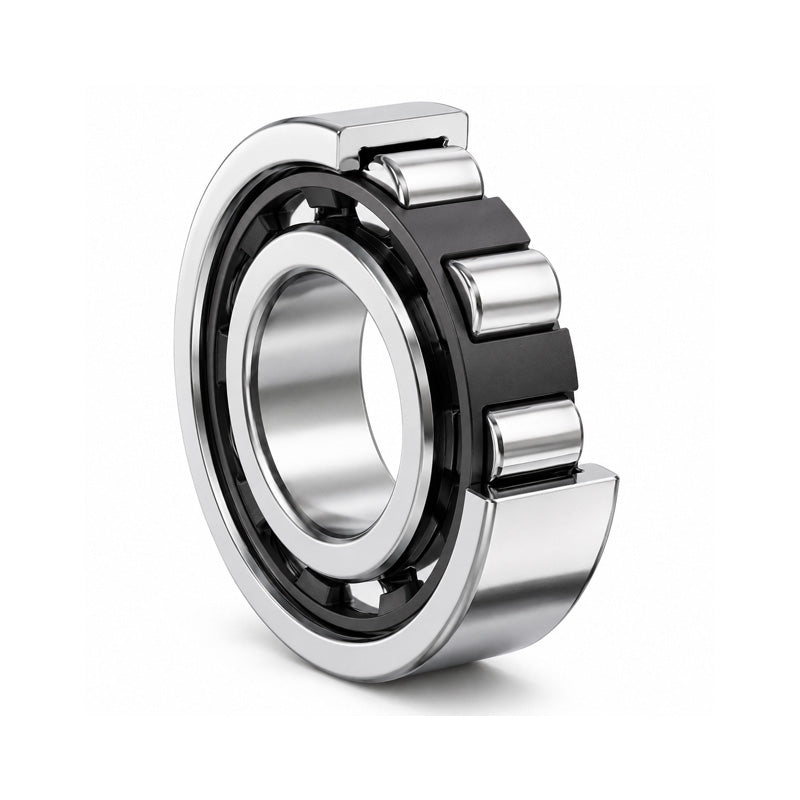

Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| r min | 1.5mm |
| D1 | 76.8mm |
| da min | 49mm |
| Da max | 81mm |
| ra max | 1.5mm |
| Dynamic Load Cr | 76500 N |
| Static Load C0r | 81500 N |
| Fatigue limit load Cur | 7200 N |
| Limiting speed nG | 4000 rpm |
| Weight | 0.671 kg |
