SKU: 20309-TVP-MB

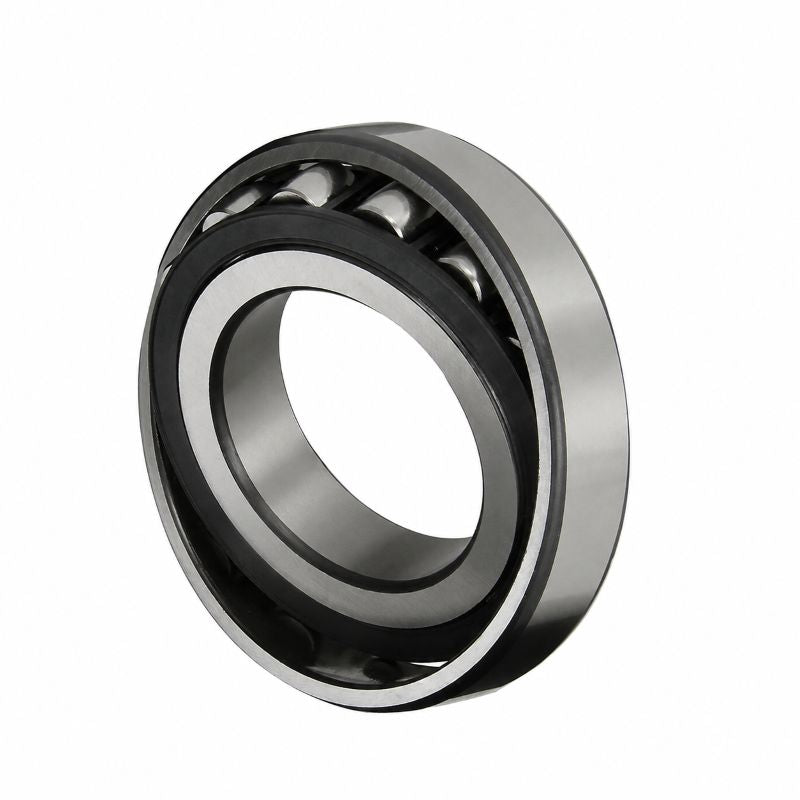

20309TVP Barrel Roller Bearing with Cylindrical Bore 45x100x25mm - Allow 2-3 Days
20309TVP Barrel Roller Bearing with Cylindrical Bore 45x100x25mm - Allow 2-3 Days
Regular price
CHF 200.00
ex VAT
Regular price
Sale price
CHF 200.00
ex VAT
In stock
Price Break
3+
CHF 159.22
4+
CHF 150.27
9+
CHF 148.48
19+
CHF 146.70
29+
CHF 144.91
39+
CHF 143.12
49+
CHF 134.17
59+
CHF 132.38
249+
CHF 130.60
499+
CHF 128.81
999+
CHF 125.23
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| r min | 1.5mm |
| D1 | 85.2mm |
| da min | 54mm |
| Da max | 91mm |
| ra max | 1.5mm |
| Dynamic Load Cr | 86500 N |
| Static Load C0r | 95000 N |
| Fatigue limit load Cur | 8500 N |
| Limiting speed nG | 3600 rpm |
| Weight | 0.914 kg |
