SKU: 20316-MB-C3-MB

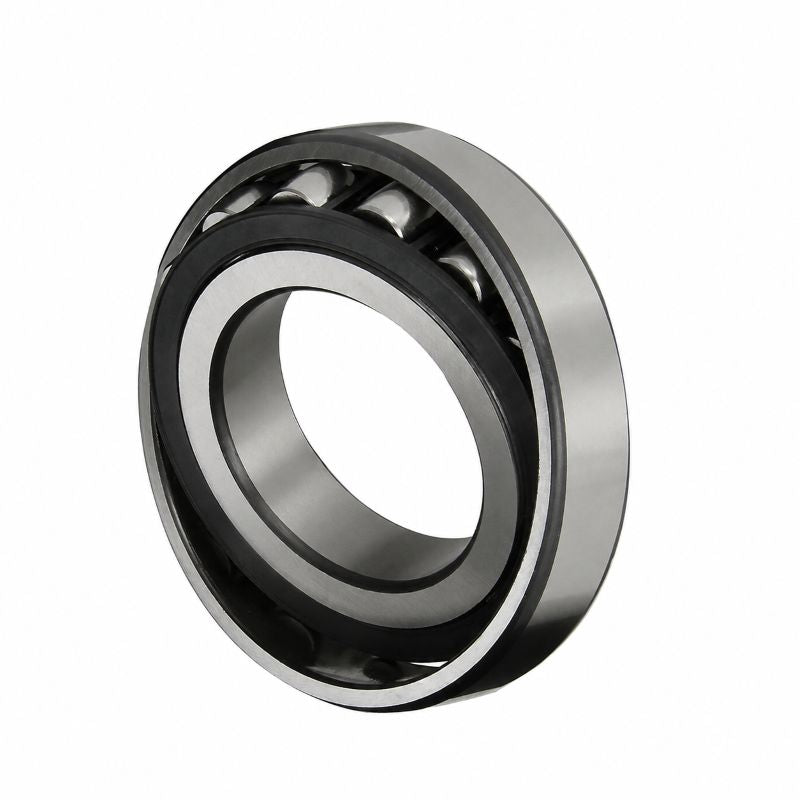

20316MBC3 Barrel Roller Bearing with Cylindrical Bore 80x170x39mm - Allow 2-3 Days
20316MBC3 Barrel Roller Bearing with Cylindrical Bore 80x170x39mm - Allow 2-3 Days
Regular price
CHF 508.00
ex VAT
Regular price
Sale price
CHF 508.00
ex VAT
In stock
Price Break
3+
CHF 404.64
4+
CHF 381.90
9+
CHF 377.36
19+
CHF 372.81
29+
CHF 368.26
39+
CHF 363.72
49+
CHF 340.98
59+
CHF 336.44
249+
CHF 331.89
499+
CHF 327.35
999+
CHF 318.25
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Clearance:
- C3
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| r min | 2.1mm |
| D1 | 147.5mm |
| da min | 92mm |
| Da max | 158mm |
| ra max | 2.1mm |
| Dynamic Load Cr | 245000 N |
| Static Load C0r | 285000 N |
| Fatigue limit load Cur | 25500 N |
| Limiting speed nG | 2000 rpm |
| Weight | 4.58 kg |
