SKU: 20320-MB-MB

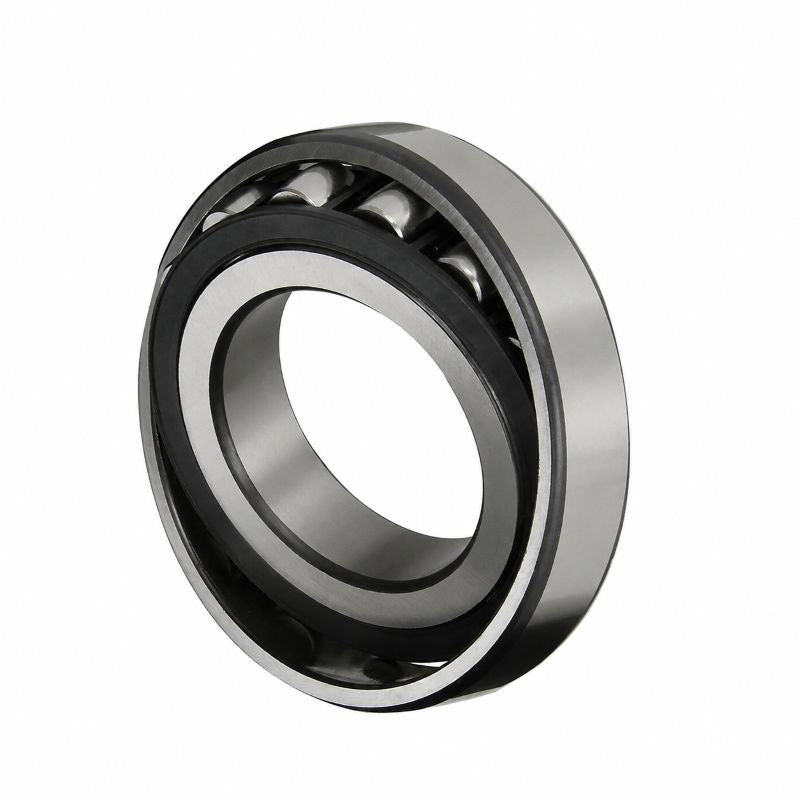

20320MB Barrel Roller Bearing with Cylindrical Bore 100x215x47mm - Allow 2-3 Days
20320MB Barrel Roller Bearing with Cylindrical Bore 100x215x47mm - Allow 2-3 Days
Regular price
CHF 972.00
ex VAT
Regular price
Sale price
CHF 972.00
ex VAT
In stock
Price Break
3+
CHF 774.45
4+
CHF 730.94
9+
CHF 722.24
19+
CHF 713.54
29+
CHF 704.84
39+
CHF 696.14
49+
CHF 652.63
59+
CHF 643.92
249+
CHF 635.22
499+
CHF 626.52
999+
CHF 609.12
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 47mm
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 215mm |
| B | 47mm |
| r min | 3mm |
| D1 | 186.6mm |
| da min | 114mm |
| Da max | 201mm |
| ra max | 2.5mm |
| Dynamic Load Cr | 365000 N |
| Static Load C0r | 440000 N |
| Fatigue limit load Cur | 38000 N |
| Limiting speed nG | 1700 rpm |
| Weight | 8.69 kg |
