SKU: 204KPP2-MB

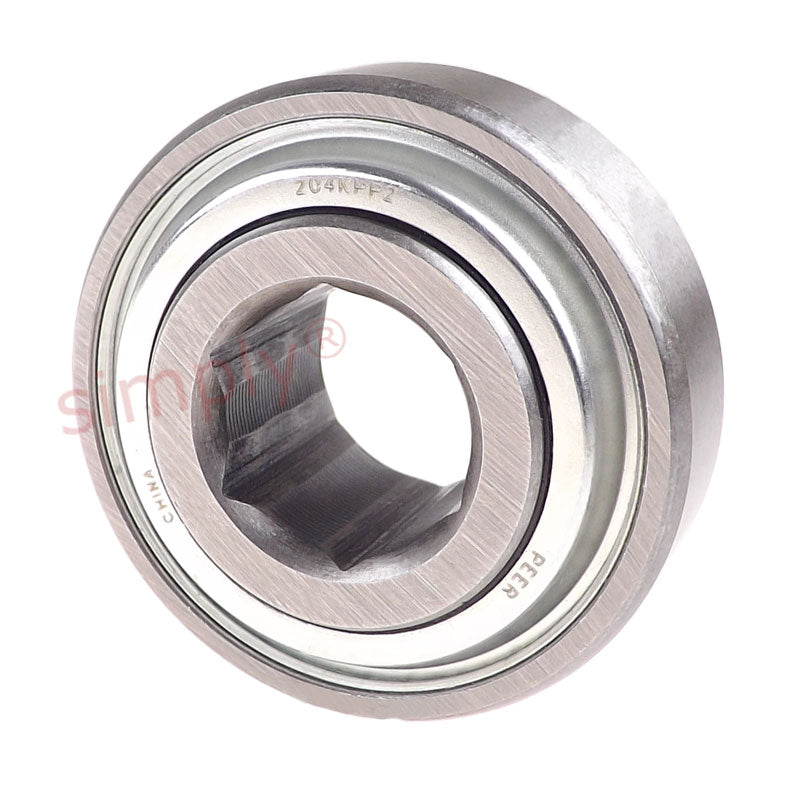

Major Brand 204KPP2 Seeder Hex Bore Bearing 0.695x1.8504x0.825 inch
Major Brand 204KPP2 Seeder Hex Bore Bearing 0.695x1.8504x0.825 inch
Regular price
CHF 17.39
ex VAT
Regular price
Sale price
CHF 17.39
ex VAT
Low stock
Price Break
10+
CHF 15.48
19+
CHF 14.61
29+
CHF 14.43
39+
CHF 14.26
49+
CHF 14.09
74+
CHF 13.91
99+
CHF 13.04
199+
CHF 12.87
249+
CHF 12.69
499+
CHF 12.52
999+
CHF 12.17
Couldn't load pickup availability
Description
Description
Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe
- Brand / Quality:
- PEER - High Quality
- Inside Diameter:
- 17.65mm = 0.695 inch
- Outside Diameter:
- 47mm = 1.85 inch
- Width:
- 20.95mm = 0.825 inch
Technical
Technical
| d | 0.695 inch = 17.653mm (Tolerance +.0000 to minus 0.005) |
|---|---|
| D | 1.8504 inch = 47.00016mm (Tolerance +.0000 to minus 0.0005) |
| Bi | 0.825 inch = 20.955mm |
| Be | 0.551 inch = 13.9954mm |
| Be & Bi | (Tolerance +.0000 to minus 0.005) |
| Seal/Shield Type | P, TRL Seal |
| Load Ratings Dynamic | 2900 lbf |
| Load Ratings Static | 1000 lbf |
