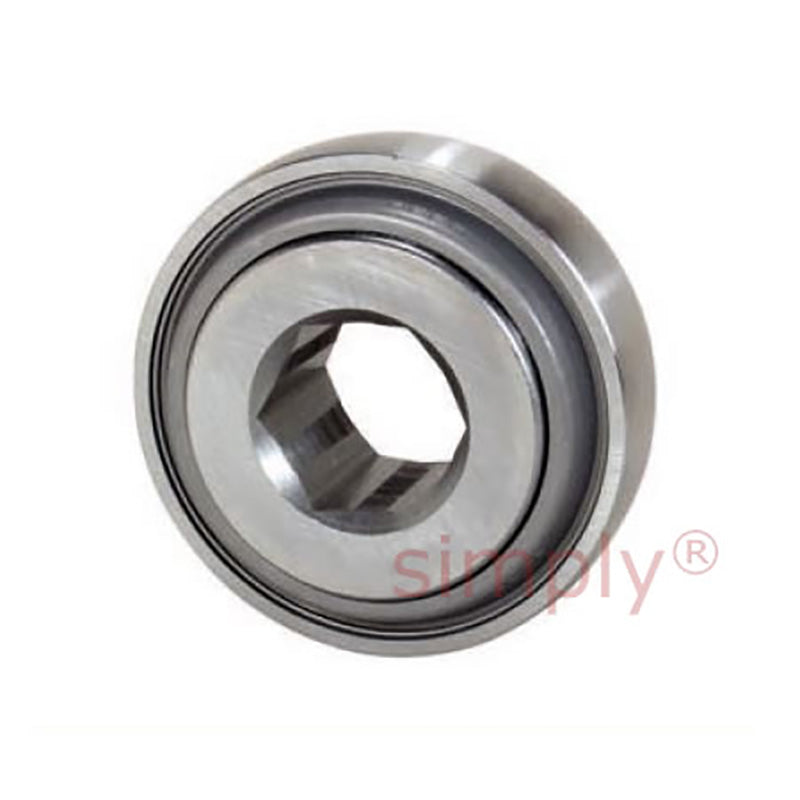

PEER 205KRRB2 Disc Opener Hex Bore Bearing 0.875x2.0472x1 inch

Disc Opener
Application conditions:

• Single disc or double disc arrangements are used to open the furrow
• Bearings are pressed into the housing which is riveted or screwed to the disc. The disc assembly is bolted to the machine frame
• High loads are encountered in no-till farming and due to angle of pull
• Rigid assembly is required for a precise disc mounting which creates a consistent furrow
• Dusty and sometimes moist environment

• HUB assembly is available for ease of mounting
• Reduced labour cost and eliminate damage due to incorrect assembly

• Optimized internal geometry
• High load capacity
• High contamination feature package with exclusive sealing system

• Rigid disc
• Minimized operating internal clearance

Seal Type: G
Typical Application & Speed Limit: Idler Sprockets/Conveyor Rolls - Basic BRG. Size < 205: 3000 RPM , Combine Power Transmission (PT)/Baler Drive Rolls - Basic BRG. Size > 205: 1750 RPM
Typical Environment: Indirect contamination, airborne dust, light/moderate water exposure
Contamination Exclusion: Moderate/High

Brand / Quality:

PEER - High Quality

Inside Diameter:

22.23mm = 0.875 (7/8) inch

Outside Diameter:

52mm = 2.047 (2-3/64) inch

Width:

25.4mm = 1 inch
