SKU: 206-NPP-B-INA

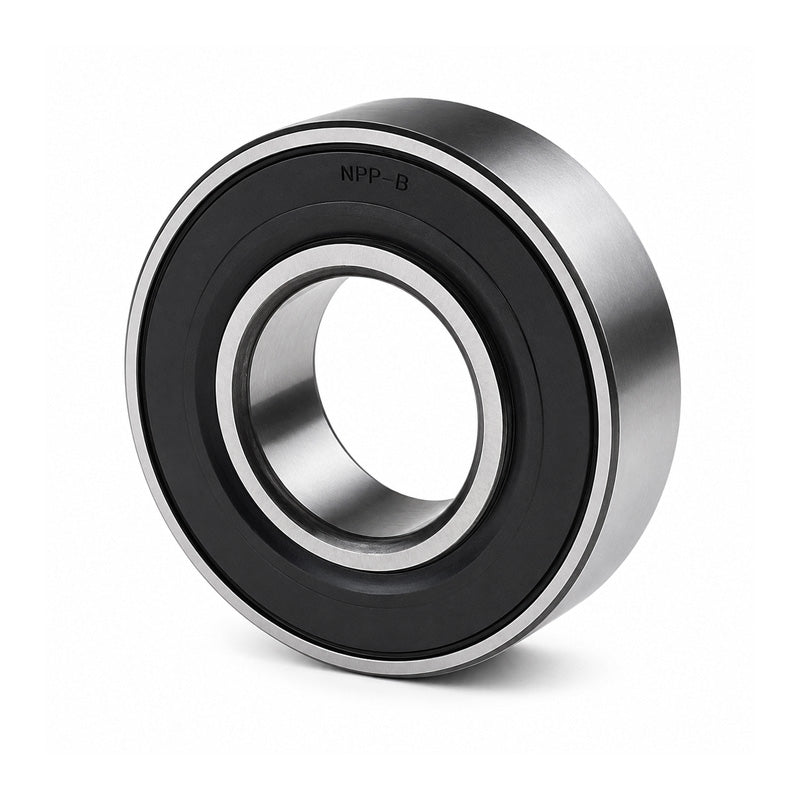

INA 206XLNPPB Metric Spherical Outer Deep Groove Ball Bearing with R Seals 30x62x16mm
INA 206XLNPPB Metric Spherical Outer Deep Groove Ball Bearing with R Seals 30x62x16mm
Regular price
CHF 20.00
ex VAT
Regular price
Sale price
CHF 20.00
ex VAT
Equivalent to: 206NPPU CS206 17262062RS
In stock
Price Break
3+
CHF 15.87
5+
CHF 14.98
10+
CHF 14.80
15+
CHF 14.62
20+
CHF 14.44
30+
CHF 14.26
40+
CHF 13.37
50+
CHF 13.19
60+
CHF 13.02
75+
CHF 12.84
100+
CHF 12.48
Description
Description
|
INA 2..-NPP-B Series Inserts: Bearing insert with spherical outer race and R seals. Bearings with a fit on the shaft allow speeds equivalent to those of standard ball bearings, are suitable for bearing arrangements with an alternating direction of rotation and offer smooth running. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
Equivalent: 206NPPU CS206 17262062RS
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 30mm |
|---|---|
| Dsp | 62mm |
| B | 16mm |
| d2 | 37.4mm |
| r min | 1mm |
| Limiting speed nG Fett | 7300 rpm |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.2 kg |
