SKU: 206-SKF

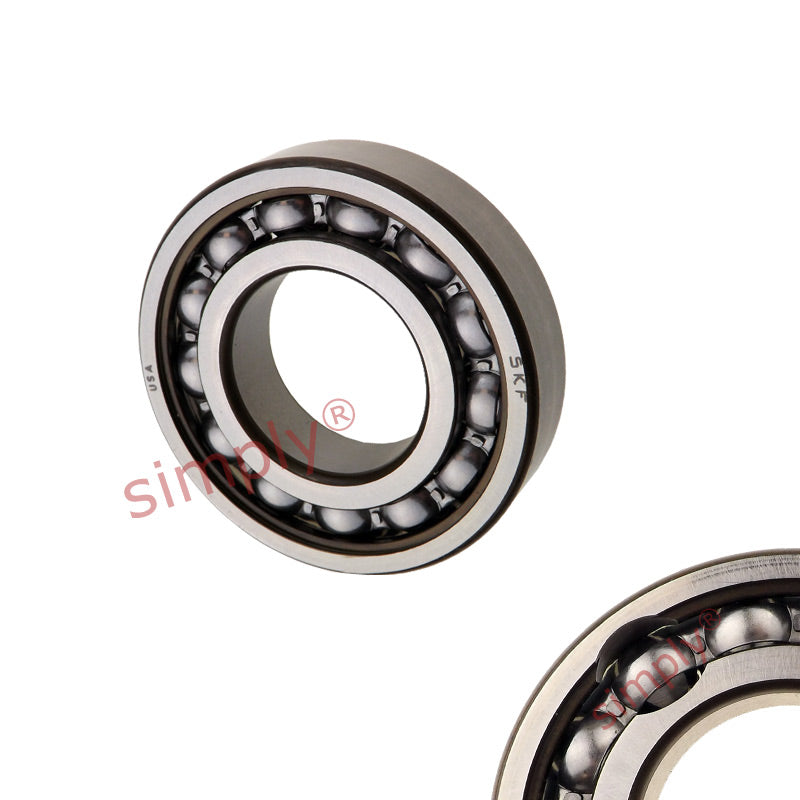

SKF 206 Open Type Filling Slot Ball Bearing 30x62x16mm
SKF 206 Open Type Filling Slot Ball Bearing 30x62x16mm
Regular price
CHF 54.00
ex VAT
Regular price
Sale price
CHF 54.00
ex VAT
In stock
Price Break
10+
CHF 43.04
19+
CHF 40.62
29+
CHF 40.14
39+
CHF 39.65
49+
CHF 39.17
74+
CHF 38.69
99+
CHF 36.27
199+
CHF 35.78
249+
CHF 35.30
499+
CHF 34.82
999+
CHF 33.85
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 16mm |
| Dynamic load C | 22.9 kN |
| Static load Co | 17.3 kN |
| Fatigue load limit Pu | 0.735 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.21 kg |
| d1 | 36.2mm |
| D2 | 54.1mm |
| r1r2 min | 1mm |
| da min | 35mm |
| Da max | 57mm |
| ra max | 1mm |
