SKU: 206KPP4-MB

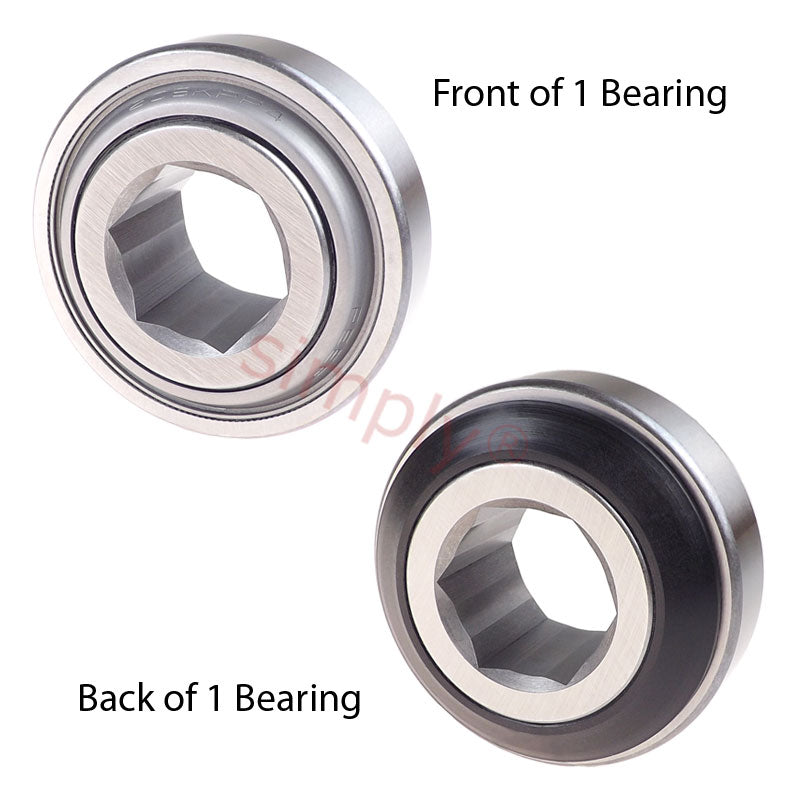

Major Brand 206KPP4 Seeder Hex Bore Nylon Slinger Included Bearing 1.001x2.4409x1.06 inch

Name: Major Brand 206KPP4 Seeder Hex Bore Nylon Slinger Included Bearing 1.001x2.4409x1.06 inch
Brand: PEER
SKU: 206KPP4-MB
Price: 26.00 CHF
Availability: InStock

CHF 26.00 ex VAT

Sale Sold out

Low stock

Price Break

5+ CHF 19.95

9+ CHF 18.83

19+ CHF 18.61

29+ CHF 18.38

49+ CHF 18.16

74+ CHF 17.93

99+ CHF 16.81

199+ CHF 16.59

249+ CHF 16.36

499+ CHF 16.14

999+ CHF 15.69

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe

Brand / Quality:: PEER - High Quality
Inside Diameter:: 25.42mm = 1.001 inch
Outside Diameter:: 61.99mm = 2.44 inch
Width:: 26.92mm = 1.06 inch

Technical

d	1.001 inch = 25.4254mm (Tolerance +.0000 to minus 0.005)
D	2.4409 inch = 61.99886mm (Tolerance +.0000 to minus 0.0005)
Bi	1.06 inch = 26.924mm
Be	0.6299 inch = 15.99946mm
Be & Bi	(Tolerance +.0000 to minus 0.0047)
Seal/Shield Type	P, TRL Seal
Load Ratings Dynamic	4370 lbf
Load Ratings Static	2320 lbf
