SKU: 207-KRR-AH03-INA

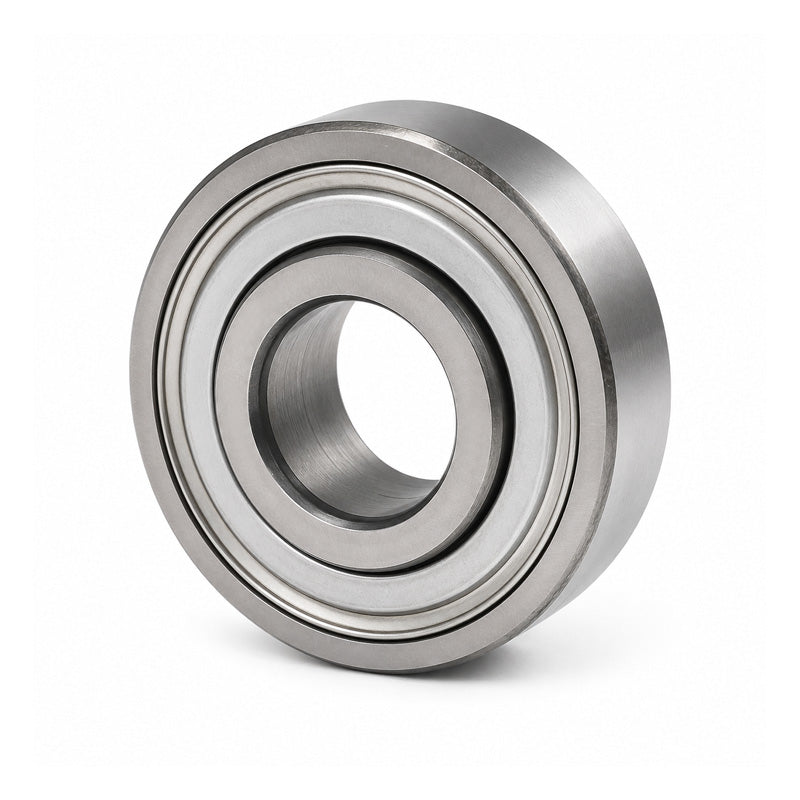

INA 207KRRAH03 Metric Parallel Outer Deep Groove Ball Bearing with R Seals 35x72x25mm
INA 207KRRAH03 Metric Parallel Outer Deep Groove Ball Bearing with R Seals 35x72x25mm
Regular price
CHF 33.17
ex VAT
Regular price
Sale price
CHF 33.17
ex VAT
In stock
Price Break
10+
CHF 29.52
19+
CHF 27.86
29+
CHF 27.53
39+
CHF 27.20
49+
CHF 26.87
74+
CHF 26.54
99+
CHF 24.88
199+
CHF 24.55
249+
CHF 24.21
499+
CHF 23.88
999+
CHF 23.22
Couldn't load pickup availability
Description
Description
|
INA 2..-KRR Series Inserts: Bearing insert with parallel outer race and R seals. The inner ring is extended on both sides and is located on the shaft using a location fit. Due to the extended inner ring, additional axial spacer rings are not required. The concentric seat allows speeds equivalent to those of standard ball bearings, while the load can be either constant or alternating. The sheet steel washers extended outwards and angled downwards form a large grease reservoir. Operating temperature range: -20 deg C to +120 deg C. Benefits: Smooth running. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 25mm
- Seals / Shields:
- Rubber Sealed
- Type:
- Parallel Outer
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 25mm |
| C | 17mm |
| C2 | 19.7mm |
| D1 | 60.3mm |
| d1 | 46.8mm |
| r min | 2mm |
| Limiting speed nG Fett | 6300 rpm |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.35 kg |
