SKU: 208-KRR-AH04-INA

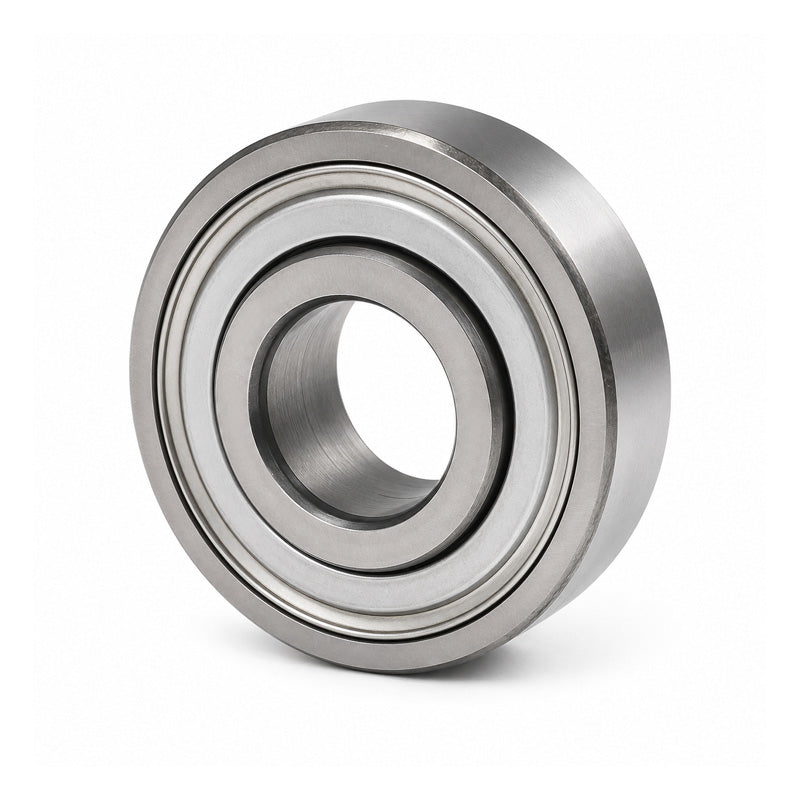

INA 208KRRAH04 Metric Parallel Outer Deep Groove Ball Bearing with R Seals 38.892x80x27.5mm
INA 208KRRAH04 Metric Parallel Outer Deep Groove Ball Bearing with R Seals 38.892x80x27.5mm
Regular price
CHF 51.00
ex VAT
Regular price
Sale price
CHF 51.00
ex VAT
In stock
Price Break
3+
CHF 40.42
5+
CHF 38.15
10+
CHF 37.70
15+
CHF 37.24
20+
CHF 36.79
30+
CHF 36.34
40+
CHF 34.07
50+
CHF 33.61
60+
CHF 33.16
75+
CHF 32.70
100+
CHF 31.79
Description
Description
|
INA 2..-KRR Series Inserts: Bearing insert with parallel outer race and R seals. The inner ring is extended on both sides and is located on the shaft using a location fit. Due to the extended inner ring, additional axial spacer rings are not required. The concentric seat allows speeds equivalent to those of standard ball bearings, while the load can be either constant or alternating. The sheet steel washers extended outwards and angled downwards form a large grease reservoir. Operating temperature range: -20 deg C to +120 deg C. Benefits: Smooth running. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 38.89mm
- Outside Diameter:
- 80mm
- Width:
- 27.5mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 38.892mm |
|---|---|
| D | 80mm |
| B | 27.5mm |
| C | 21mm |
| C2 | 21.2mm |
| D1 | 68.2mm |
| d1 | 52.3mm |
| r min | 1mm |
| Limiting speed nG Fett | 5500 rpm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.48 kg |
