SKU: 209-SKF

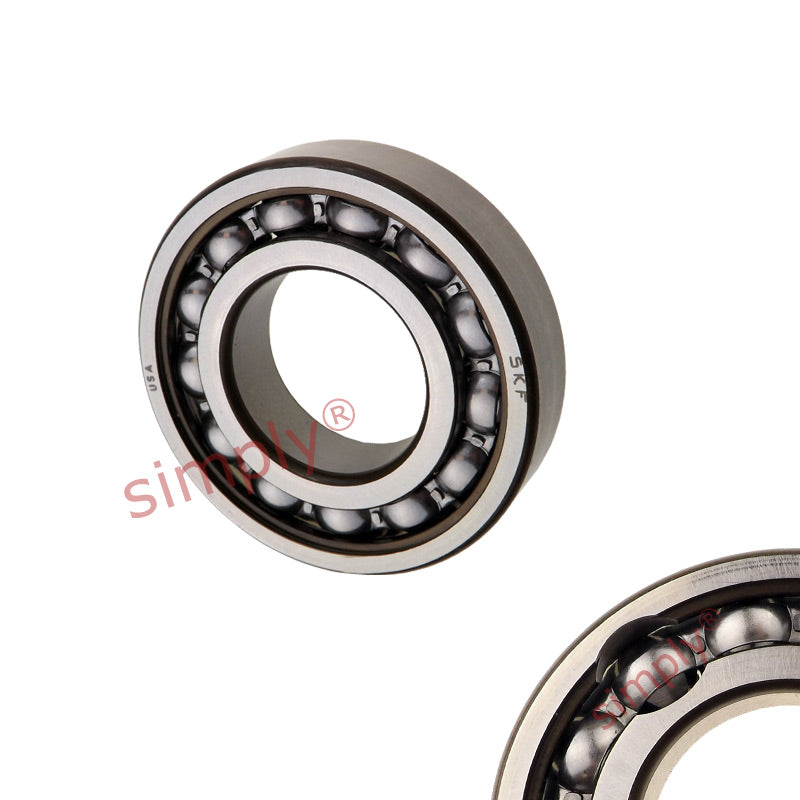

SKF 209 Open Type Filling Slot Ball Bearing 45x85x19mm
SKF 209 Open Type Filling Slot Ball Bearing 45x85x19mm
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
10+
CHF 59.56
19+
CHF 56.21
29+
CHF 55.54
39+
CHF 54.87
49+
CHF 54.20
74+
CHF 53.53
99+
CHF 50.19
199+
CHF 49.52
249+
CHF 48.85
499+
CHF 48.18
999+
CHF 46.84
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| Dynamic load C | 39.6 kN |
| Static load Co | 32.5 kN |
| Fatigue load limit Pu | 1.37 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.44 kg |
| d1 | 52.5mm |
| D2 | 75.2mm |
| r1r2 min | 1.1mm |
| da min | 51.5mm |
| Da max | 78.5mm |
| ra max | 1mm |
