Renold Blue Box 20B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
Renold Blue Box 20B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
Regular price
CHF 41.13
ex VAT
Regular price
Sale price
CHF 41.13
ex VAT
In stock
Price Break
10+
CHF 36.61
19+
CHF 34.55
29+
CHF 34.14
39+
CHF 33.73
49+
CHF 33.32
74+
CHF 32.90
99+
CHF 30.85
199+
CHF 30.44
249+
CHF 30.02
499+
CHF 29.61
999+
CHF 28.79
Couldn't load pickup availability
Description
Description

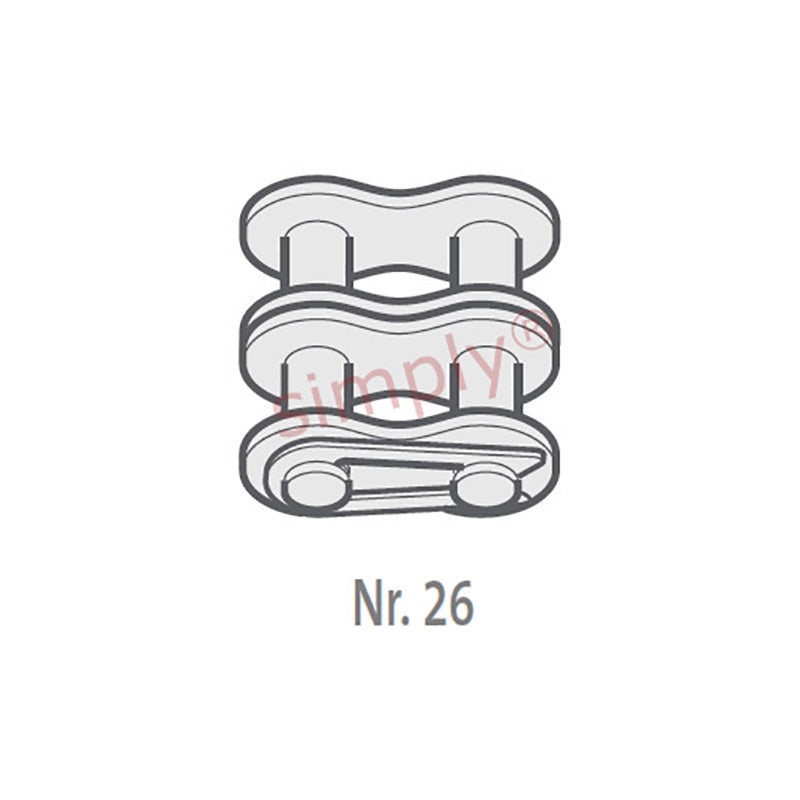

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 19.56mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 26.42mm |
| Plate Width Inner max (E) | 4.62mm |
| Plate Width Outer max (F) | 3.61mm |
| Pin Diameter max (G) | 10.19mm |
| Pin Length max (H1) | 76.7mm |
| Connecting Link Extension max (J) | 2.7mm |
| ISO606 Tensile Strength min | 170000 N |
| Weight | 0.08kg/m |
