SKU: 20B-2-SNX-NO26-RENOLD
Renold SYNO 20B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
Renold SYNO 20B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
Regular price
CHF 115.00
ex VAT
Regular price
Sale price
CHF 115.00
ex VAT
In stock
Price Break
2+
CHF 91.21
5+
CHF 86.08
10+
CHF 85.06
29+
CHF 84.03
49+
CHF 83.01
75+
CHF 81.98
100+
CHF 76.86
200+
CHF 75.84
250+
CHF 74.81
500+
CHF 73.79
1000+
CHF 71.74
Description
Description

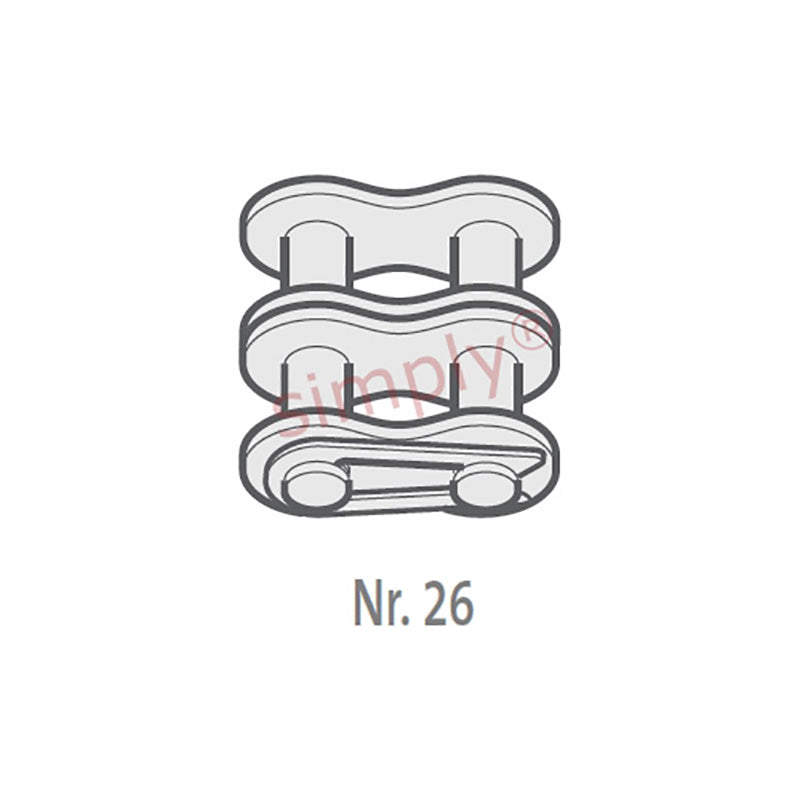

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 19.56mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 26.42mm |
| Plate Width Inner max (E) | 4.62mm |
| Plate Width Outer max (F) | 3.61mm |
| Pin Diameter max (G) | 10.19mm |
| Pin Length max (H2) | 76.7mm |
| Connecting Link Extension max (J) | 2.7mm |
| Transverse Pitch nom (K) | mm |
| ISO606 Tensile Strength min | 170000 N |
| Weight | 0.08kg/m |
