SKU: 20B-3-NO11-RENOLD

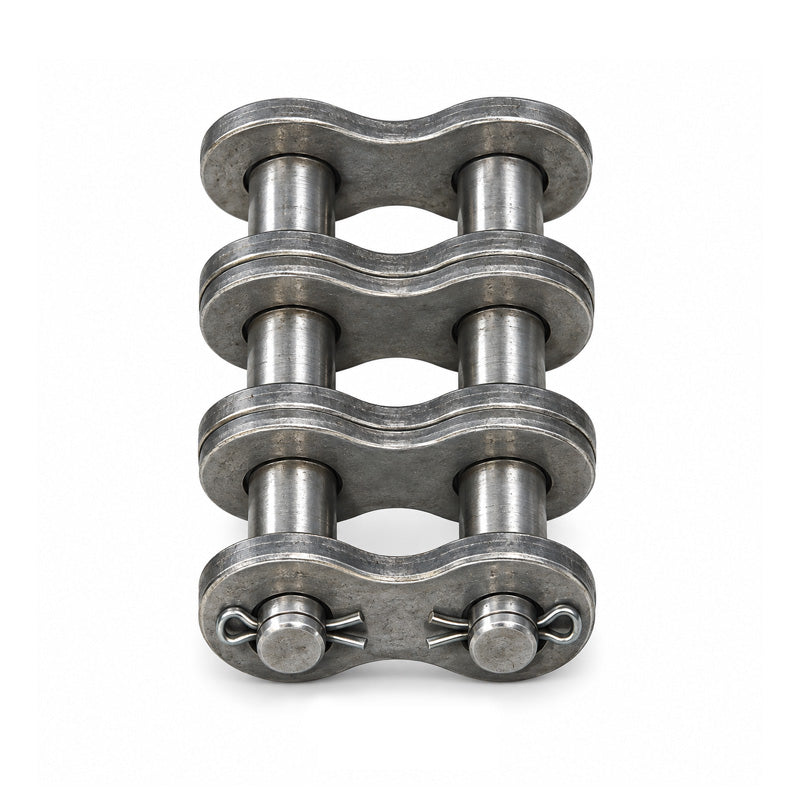

Renold 20B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Renold 20B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Regular price
CHF 9.68
ex VAT
Regular price
Sale price
CHF 9.68
ex VAT
In stock
Price Break
10+
CHF 8.62
19+
CHF 8.13
29+
CHF 8.03
39+
CHF 7.94
49+
CHF 7.84
74+
CHF 7.74
99+
CHF 7.26
199+
CHF 7.16
249+
CHF 7.07
499+
CHF 6.97
999+
CHF 6.78
Couldn't load pickup availability
Description
Description
Dunlop COT / No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 19.56mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 26.3mm |
| Plate Width Inner max (E) | 4.5mm |
| Plate Width Outer max (F) | 3.5mm |
| Pin Diameter max (G) | 10.19mm |
| Pin Length max (H3) | 108.9mm |
| Connecting Link Extension max (J) | 10.8mm |
| ISO606 Tensile Strength min | 275000 N |
| Weight | 0.19kg/m |
