SKU: 210-SKF

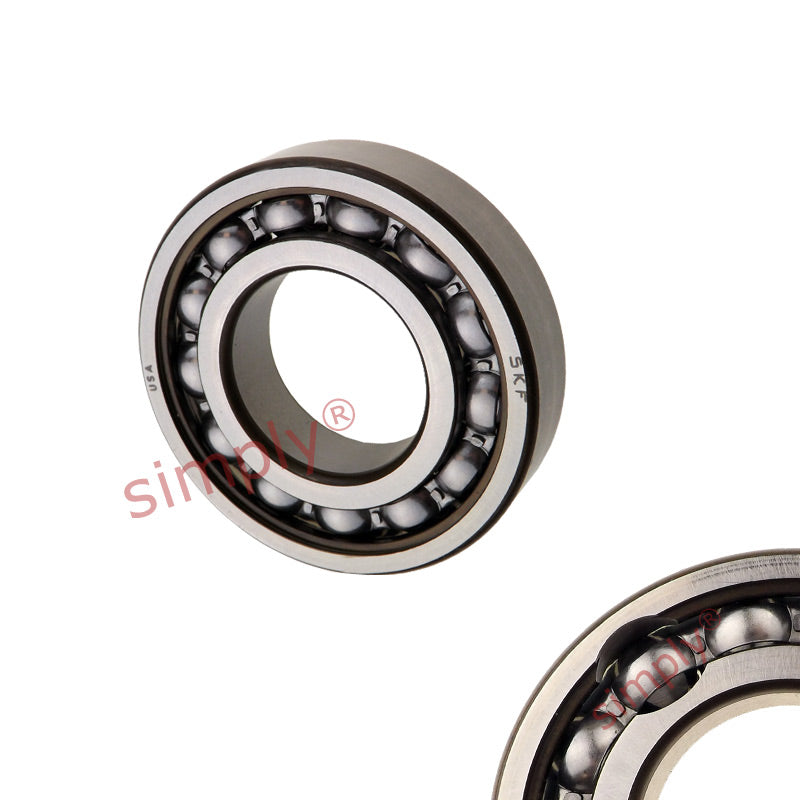

SKF 210 Open Type Filling Slot Ball Bearing 50x90x20mm
SKF 210 Open Type Filling Slot Ball Bearing 50x90x20mm
Regular price
CHF 80.00
ex VAT
Regular price
Sale price
CHF 80.00
ex VAT
In stock
Price Break
10+
CHF 62.99
19+
CHF 59.45
29+
CHF 58.74
39+
CHF 58.04
49+
CHF 57.33
74+
CHF 56.62
99+
CHF 53.08
199+
CHF 52.37
249+
CHF 51.67
499+
CHF 50.96
999+
CHF 49.54
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 20mm |
| Dynamic load C | 39.1 kN |
| Static load Co | 34.5 kN |
| Fatigue load limit Pu | 1.46 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.5 kg |
| d1 | 57.5mm |
| D2 | 81.7mm |
| r1r2 min | 1.1mm |
| da min | 56.5mm |
| Da max | 83.5mm |
| ra max | 1mm |
