SKU: 211-2ZNR-SKF

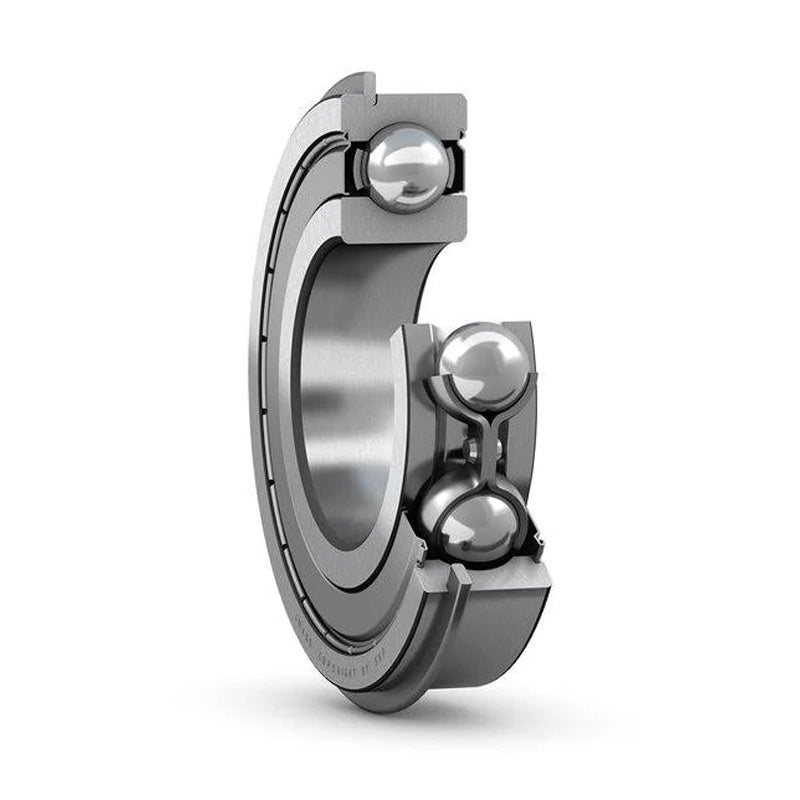

SKF 2112ZNR Metal Shielded Filling Slot Ball Bearing and Snap Ring 55x100x21mm - Allow 2-3 Days
SKF 2112ZNR Metal Shielded Filling Slot Ball Bearing and Snap Ring 55x100x21mm - Allow 2-3 Days
Regular price
CHF 149.00
ex VAT
Regular price
Sale price
CHF 149.00
ex VAT
In stock
Price Break
10+
CHF 131.67
19+
CHF 126.35
29+
CHF 123.69
39+
CHF 119.70
49+
CHF 117.04
74+
CHF 110.39
99+
CHF 93.10
199+
CHF 0.00
249+
CHF 0.00
499+
CHF 0.00
999+
CHF 0.00
Description
Description
|
SKF Filling Slot Ball Bearings with Snap Ring: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. This option is supplied with snap ring groove and snap ring. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 21mm |
| Dynamic load C | 48.4 kN |
| Static load Co | 44 kN |
| Fatigue load limit Pu | 1.86 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 7500 rpm |
| Weight | 0.66 kg |
| Snap ring | SP100 |
| d1 | 63.1mm |
| D2 | 89.4mm |
| D3 | 96.8mm |
| D4 | 106.5mm |
| f | 2.46mm |
| b | 2.7mm |
| C | 3.28mm |
| ro max | 0.6mm |
| r1r2 min | 1.5mm |
| da min | 63mm |
| Da max | 92mm |
| Db min | 108mm |
| ba min | 3mm |
| Ca max | 5.74mm |
| ra max | 1.5mm |
