SKU: 212-SKF

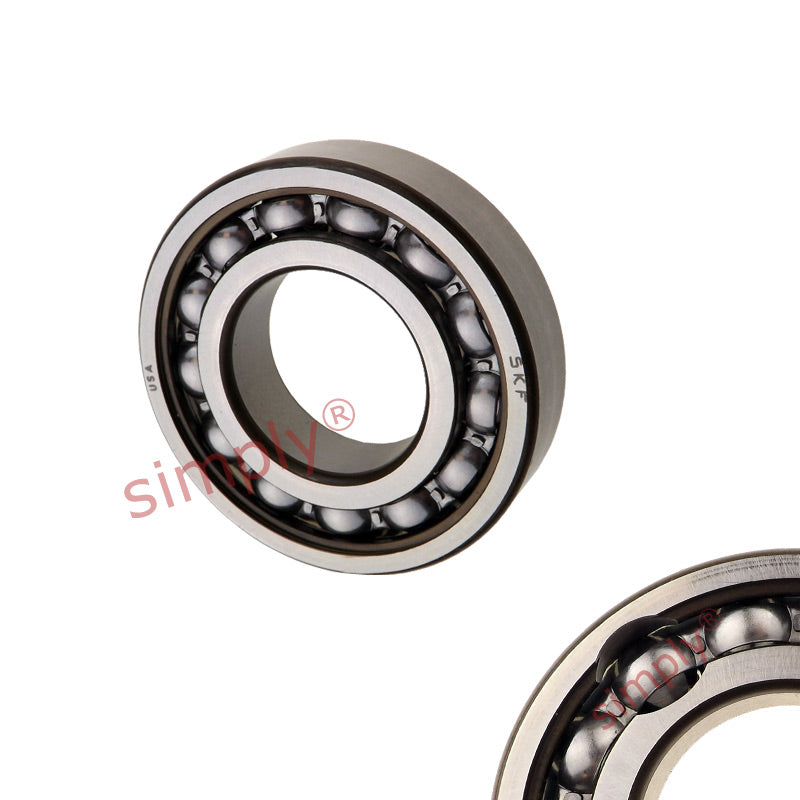

SKF 212 Open Type Filling Slot Ball Bearing 60x110x22mm
SKF 212 Open Type Filling Slot Ball Bearing 60x110x22mm
Regular price
CHF 103.00
ex VAT
Regular price
Sale price
CHF 103.00
ex VAT
In stock
Price Break
10+
CHF 81.70
19+
CHF 77.11
29+
CHF 76.19
39+
CHF 75.28
49+
CHF 74.36
74+
CHF 73.44
99+
CHF 68.85
199+
CHF 67.93
249+
CHF 67.01
499+
CHF 66.10
999+
CHF 64.26
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 22mm |
| Dynamic load C | 56.1 kN |
| Static load Co | 50 kN |
| Fatigue load limit Pu | 2.12 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 6700 rpm |
| Weight | 0.85 kg |
| d1 | 70.1mm |
| D2 | 97mm |
| r1r2 min | 1.5mm |
| da min | 68mm |
| Da max | 102mm |
| ra max | 1.5mm |
