SKU: 212-Z-SKF

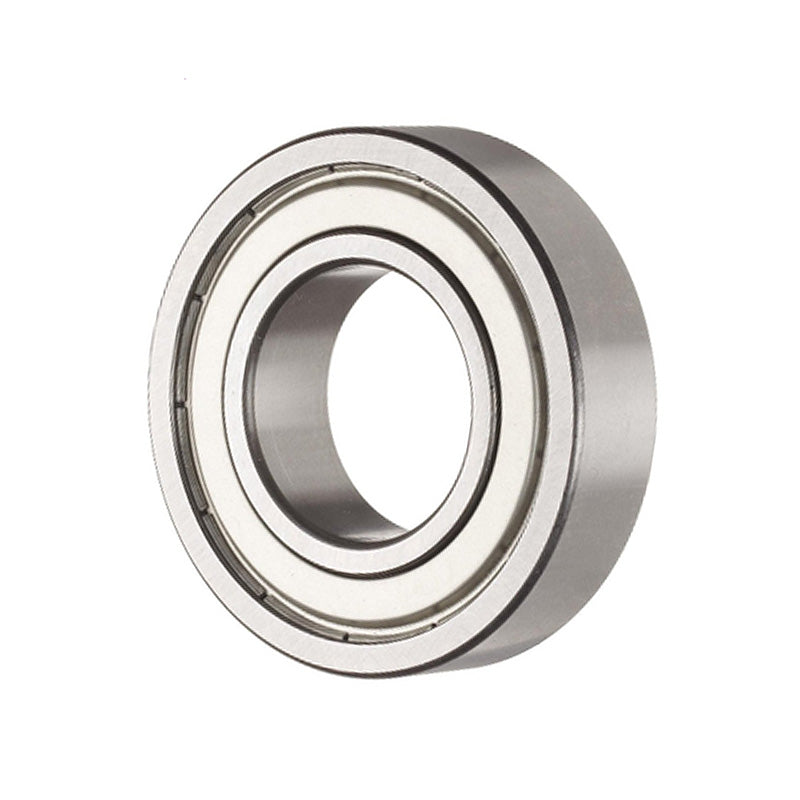

SKF 212Z Metal Shielded Filling Slot Ball Bearing 60x110x22mm
SKF 212Z Metal Shielded Filling Slot Ball Bearing 60x110x22mm
Regular price
CHF 132.00
ex VAT
Regular price
Sale price
CHF 132.00
ex VAT
In stock
Price Break
10+
CHF 105.16
19+
CHF 99.25
29+
CHF 98.07
39+
CHF 96.89
49+
CHF 95.71
74+
CHF 94.52
99+
CHF 88.62
199+
CHF 87.43
249+
CHF 86.25
499+
CHF 85.07
999+
CHF 82.71
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 22mm |
| Dynamic load C | 56.1 kN |
| Static load Co | 50 kN |
| Fatigue load limit Pu | 2.12 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 6700 rpm |
| Weight | 0.85 kg |
| d1 | 70.1mm |
| D2 | 97mm |
| r1r2 min | 1.5mm |
| da min | 68mm |
| Da max | 102mm |
| ra max | 1.5mm |
