SKU: 213-SKF

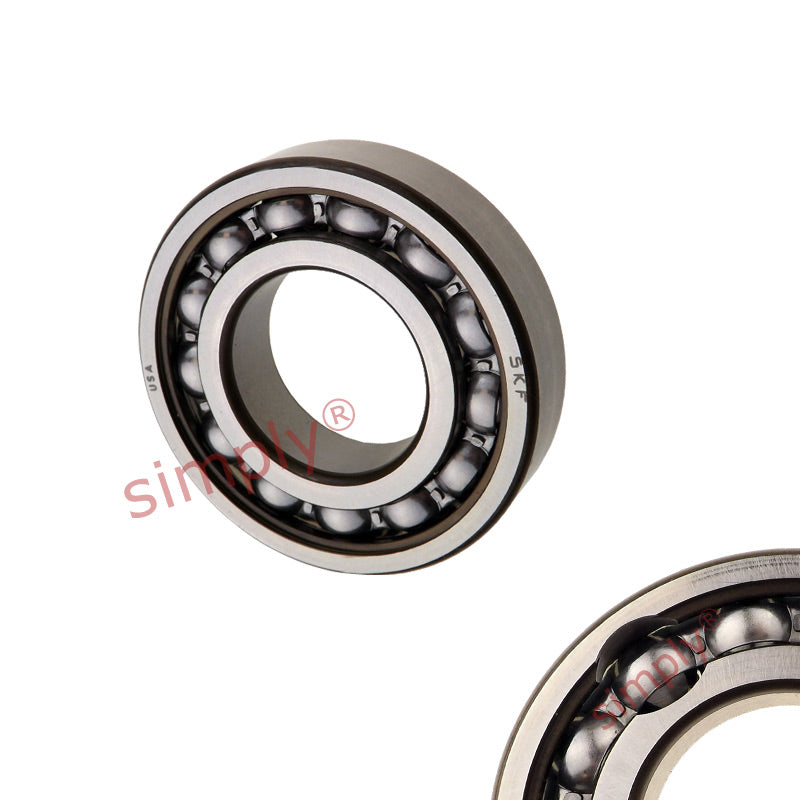

SKF 213 Open Type Filling Slot Ball Bearing 65x120x23mm
SKF 213 Open Type Filling Slot Ball Bearing 65x120x23mm
Regular price
CHF 113.98
ex VAT
Regular price
Sale price
CHF 113.98
ex VAT
In stock
Price Break
10+
CHF 101.44
19+
CHF 95.74
29+
CHF 94.60
39+
CHF 93.46
49+
CHF 92.32
74+
CHF 91.18
99+
CHF 85.49
199+
CHF 84.35
249+
CHF 83.21
499+
CHF 82.07
999+
CHF 79.79
Couldn't load pickup availability
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 23mm |
| Dynamic load C | 60.5 kN |
| Static load Co | 58.5 kN |
| Fatigue load limit Pu | 2.5 kN |
| Reference speed | 10000 rpm |
| Limiting speed | 6000 rpm |
| Weight | 1.05 kg |
| d1 | 83.3mm |
| D2 | 106mm |
| r1r2 min | 1.5mm |
| da min | 73mm |
| Da max | 112mm |
| ra max | 1.5mm |
