SKU: 21305CC/C3-SKF

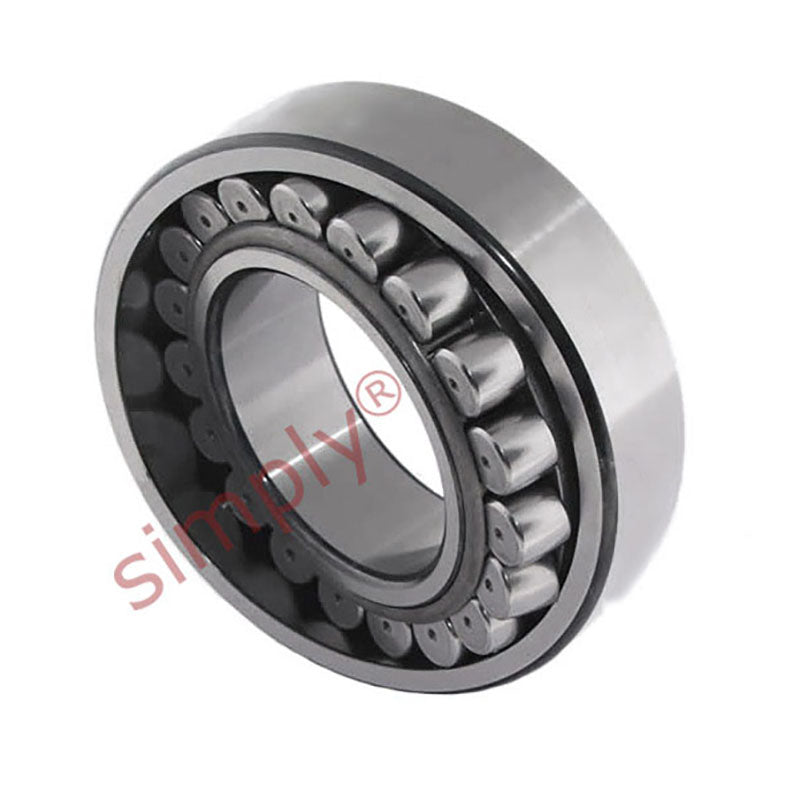

SKF 21305CCC3 Spherical Roller Bearing with Cylindrical Bore with Steel Cage 25x62x17mm
SKF 21305CCC3 Spherical Roller Bearing with Cylindrical Bore with Steel Cage 25x62x17mm
Regular price
CHF 74.00
ex VAT
Regular price
Sale price
CHF 74.00
ex VAT
In stock
Price Break
3+
CHF 58.58
4+
CHF 55.29
9+
CHF 54.63
19+
CHF 53.97
29+
CHF 53.31
39+
CHF 52.66
49+
CHF 49.36
59+
CHF 48.71
249+
CHF 48.05
499+
CHF 47.39
999+
CHF 46.07
Share this product
Description
Description
|
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Clearance:
- C3
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 25mm |
| D | 62mm |
| B | 17mm |
| D1 | 50.7mm |
| d2 | 35.7mm |
| r1r2 min | 1.1mm |
| b | mm |
| K | mm |
| da min | 32mm |
| Da max | 55mm |
| ra max | 1mm |
| --- | Speeds, Loads and Weights |
| Dynamic load C | 41.4 kN |
| Static load Co | 41.5 kN |
| Fatigue load limit Pu | 4.55 kN |
| Reference speed | 8500 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.28 kg |
| --- | Factors |
| Calculation factor e | 0.3 |
| Calculation factor Y1 | 2.3 |
| Calculation factor Y2 | 3.4 |
| Calculation factor Y0 | 2.2 |
