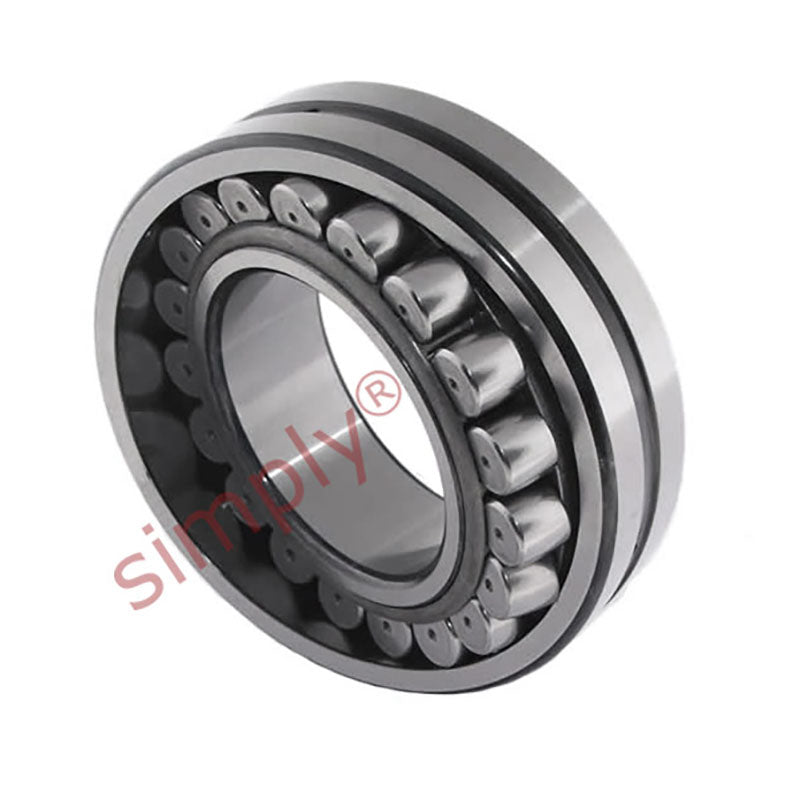

FAG 21309E1C3 X-life Spherical Roller Bearing with Cylindrical Bore 45x100x25mm
FAG 21309E1C3 X-life Spherical Roller Bearing with Cylindrical Bore 45x100x25mm
Regular price
CHF 90.00
ex VAT
Regular price
Sale price
CHF 90.00
ex VAT
In stock
Price Break
3+
CHF 71.53
4+
CHF 67.51
9+
CHF 66.71
19+
CHF 65.90
29+
CHF 65.10
39+
CHF 64.30
49+
CHF 60.28
59+
CHF 59.47
249+
CHF 58.67
499+
CHF 57.87
999+
CHF 56.26
Description
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 45mm |
| D | 100mm |
| B | 25mm |
| r min. | 1.5mm |
| D1 | 89.8mm |
| d2 | 67.6mm |
| ds | 3.2mm |
| ns | 4.8mm |
| da min. | 54mm |
| Da max. | 91mm |
| ra max. | 1.5mm |
| --- | Loads, Speeds and Weights |
| Fatigue limit load | 17300 N |
| Limiting speed | 8500 rpm |
| Reference speed | 5500 rpm |
| Dynamic Load Rating | 129000 N |
| Static Load Rating | 130000 N |
| Weight | 0.845kg |
| --- | Factors |
| e | 0.23 |
| Y1 | 2.92 |
| Y2 | 4.35 |
| Y0 | 2.86 |
