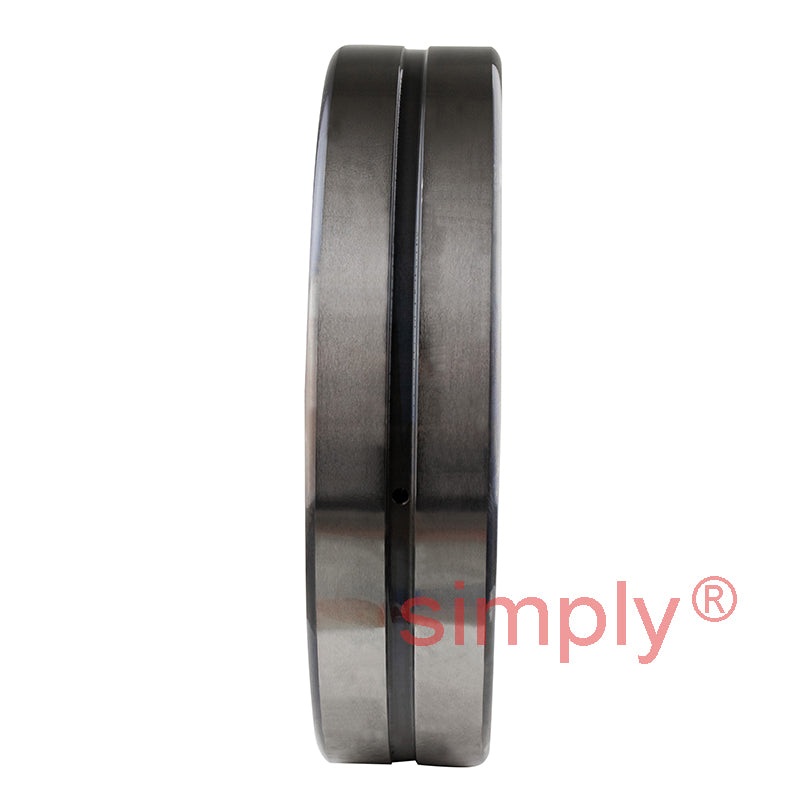

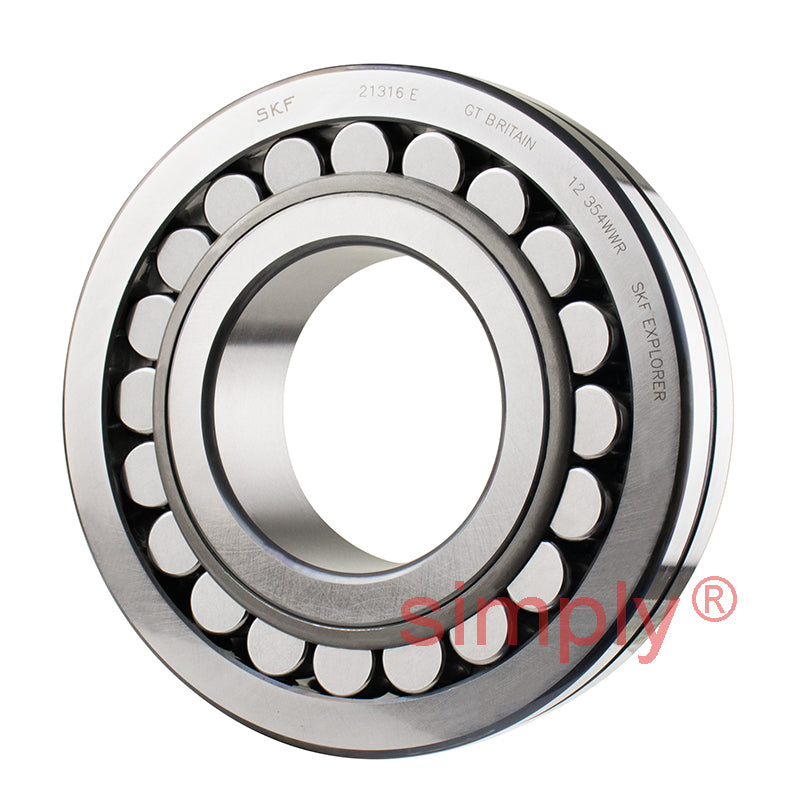

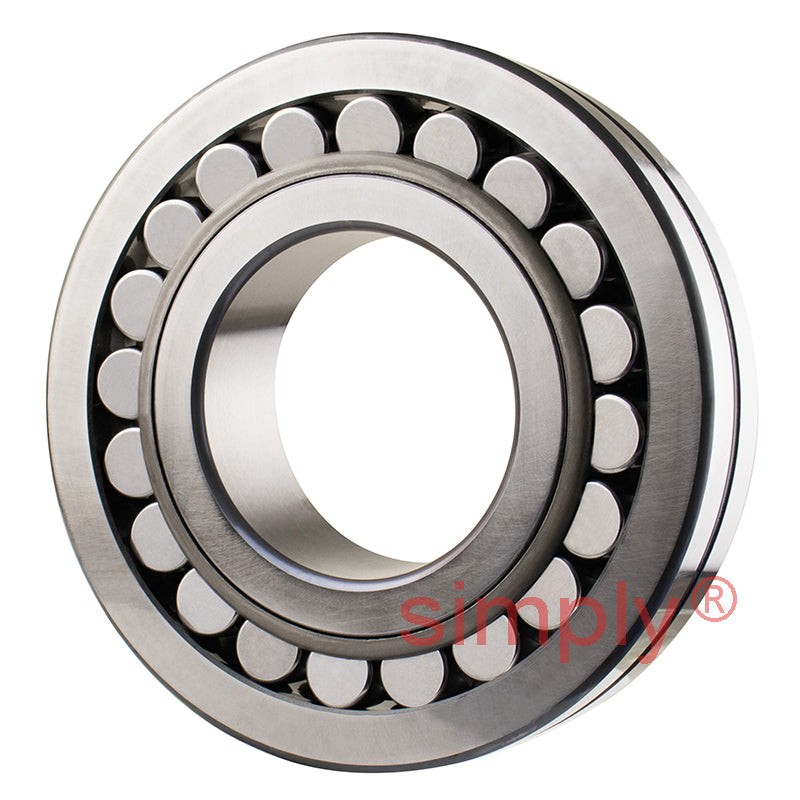

• SKF 21316E Spherical Roller Bearing with Cylindrical Bore 80x170x39mm
  • SKF 21316E Spherical Roller Bearing with Cylindrical Bore 80x170x39mm
  • SKF 21316E Spherical Roller Bearing with Cylindrical Bore 80x170x39mm
1 3

SKU: 21316E-SKF

SKF 21316E Spherical Roller Bearing with Cylindrical Bore 80x170x39mm

SKF 21316E Spherical Roller Bearing with Cylindrical Bore 80x170x39mm
CHF 245.00 ex VAT
CHF 245.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 194.49
4+ CHF 183.56
9+ CHF 181.37
19+ CHF 179.19
29+ CHF 177.00
39+ CHF 174.82
49+ CHF 163.89
59+ CHF 161.71
249+ CHF 159.52
499+ CHF 157.34
999+ CHF 152.97
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
80mm
Outside Diameter:
170mm
Width:
39mm
Clearance:
* Standard
Technical
--- Dimensions
d 80mm
D 170mm
B 39mm
D1 141mm
d2 106mm
r1r2 min 2.1mm
b 5.5mm
K 3mm
da min 92mm
Da max 158mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic load C 325 kN
Static load Co 375 kN
Fatigue load limit Pu 39 kN
Reference speed 3800 rpm
Limiting speed 5300 rpm
Weight 4.45 kg
--- Factors
Calculation factor e 0.24
Calculation factor Y1 2.8
Calculation factor Y2 4.2
Calculation factor Y0 2.8
