SKU: 214-SKF

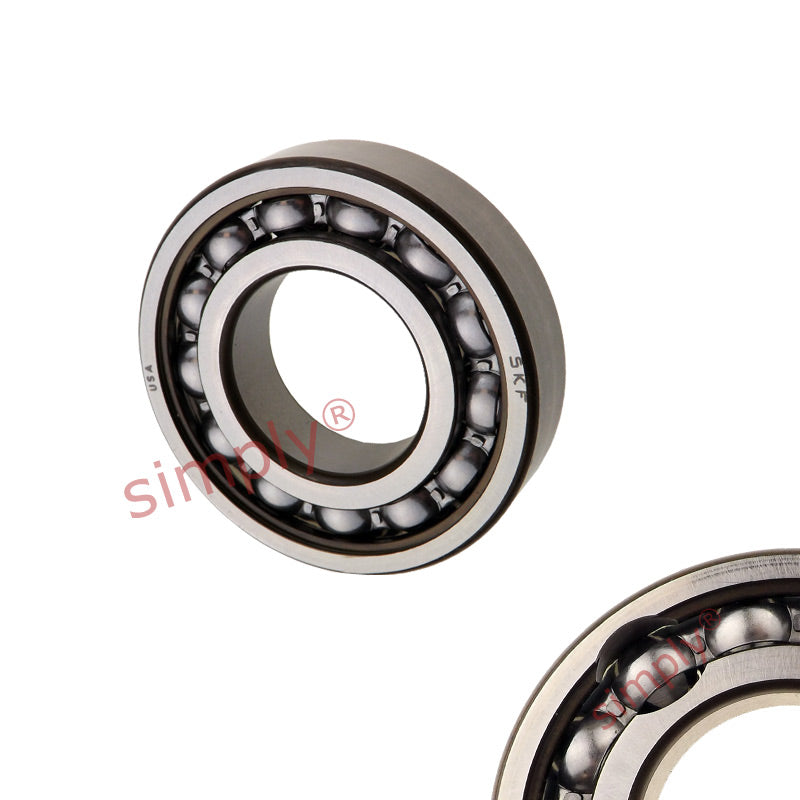

SKF 214 Open Type Filling Slot Ball Bearing 70x125x24mm
SKF 214 Open Type Filling Slot Ball Bearing 70x125x24mm
Regular price
CHF 125.00
ex VAT
Regular price
Sale price
CHF 125.00
ex VAT
In stock
Price Break
10+
CHF 99.16
19+
CHF 93.59
29+
CHF 92.47
39+
CHF 91.36
49+
CHF 90.25
74+
CHF 89.13
99+
CHF 83.56
199+
CHF 82.45
249+
CHF 81.33
499+
CHF 80.22
999+
CHF 77.99
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| B | 24mm |
| Dynamic load C | 66 kN |
| Static load Co | 65.5 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 6000 rpm |
| Weight | 1.15 kg |
| d1 | 87.1mm |
| D2 | 111mm |
| r1r2 min | 1.5mm |
| da min | 78mm |
| Da max | 117mm |
| ra max | 1.5mm |
