SKU: 216-SKF

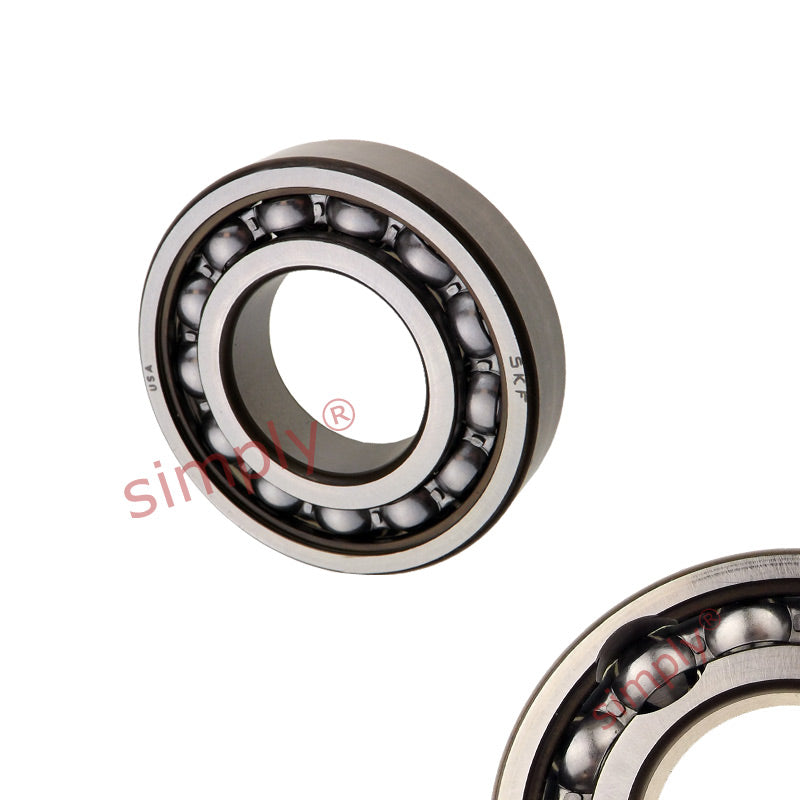

SKF 216 Open Type Filling Slot Ball Bearing 80x140x26mm
SKF 216 Open Type Filling Slot Ball Bearing 80x140x26mm
Regular price
CHF 208.29
ex VAT
Regular price
Sale price
CHF 208.29
ex VAT
In stock
Price Break
10+
CHF 185.38
19+
CHF 174.96
29+
CHF 172.88
39+
CHF 170.80
49+
CHF 168.71
74+
CHF 166.63
99+
CHF 156.22
199+
CHF 154.13
249+
CHF 152.05
499+
CHF 149.97
999+
CHF 145.80
Couldn't load pickup availability
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 140mm |
| B | 26mm |
| Dynamic load C | 88 kN |
| Static load Co | 85 kN |
| Fatigue load limit Pu | 3.45 kN |
| Reference speed | 8500 rpm |
| Limiting speed | 5300 rpm |
| Weight | 1.55 kg |
| d1 | 88.8mm |
| D2 | 127mm |
| r1r2 min | 2mm |
| da min | 89mm |
| Da max | 131mm |
| ra max | 2mm |
