SKU: 217-SKF

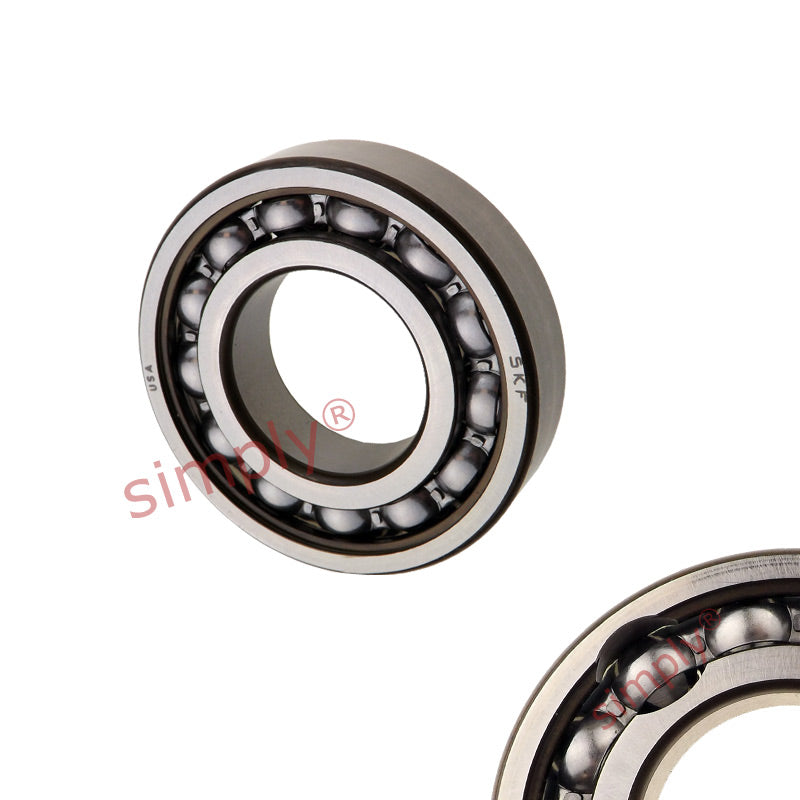

SKF 217 Open Type Filling Slot Ball Bearing 85x150x28mm
SKF 217 Open Type Filling Slot Ball Bearing 85x150x28mm
Regular price
CHF 275.90
ex VAT
Regular price
Sale price
CHF 275.90
ex VAT
In stock
Price Break
10+
CHF 245.55
19+
CHF 231.76
29+
CHF 229.00
39+
CHF 226.24
49+
CHF 223.48
74+
CHF 220.72
99+
CHF 206.93
199+
CHF 204.17
249+
CHF 201.41
499+
CHF 198.65
999+
CHF 193.13
Couldn't load pickup availability
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 85mm |
|---|---|
| D | 150mm |
| B | 28mm |
| Dynamic load C | 96.8 kN |
| Static load Co | 100 kN |
| Fatigue load limit Pu | 3.9 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 4800 rpm |
| Weight | 1.95 kg |
| d1 | 97mm |
| D2 | 135mm |
| r1r2 min | 2mm |
| da min | 96mm |
| Da max | 139mm |
| ra max | 2mm |
