SKU: 22-8M-30F-1008

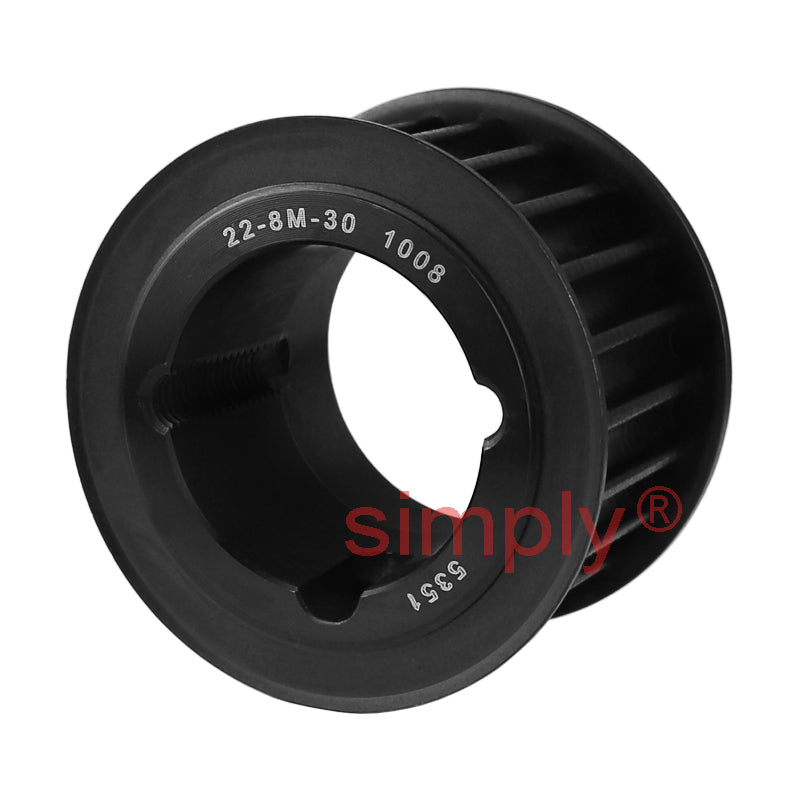

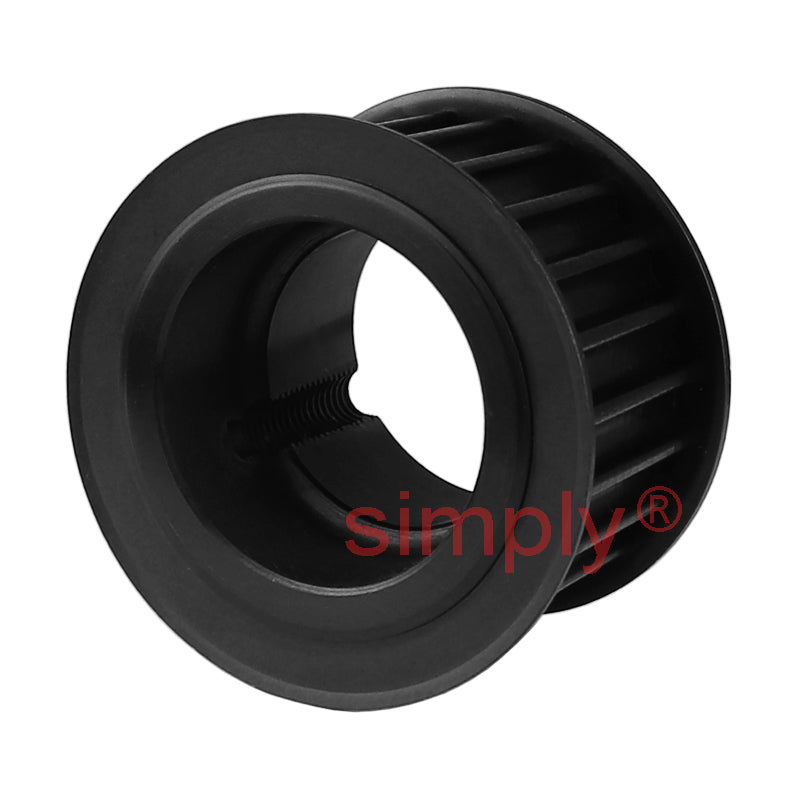

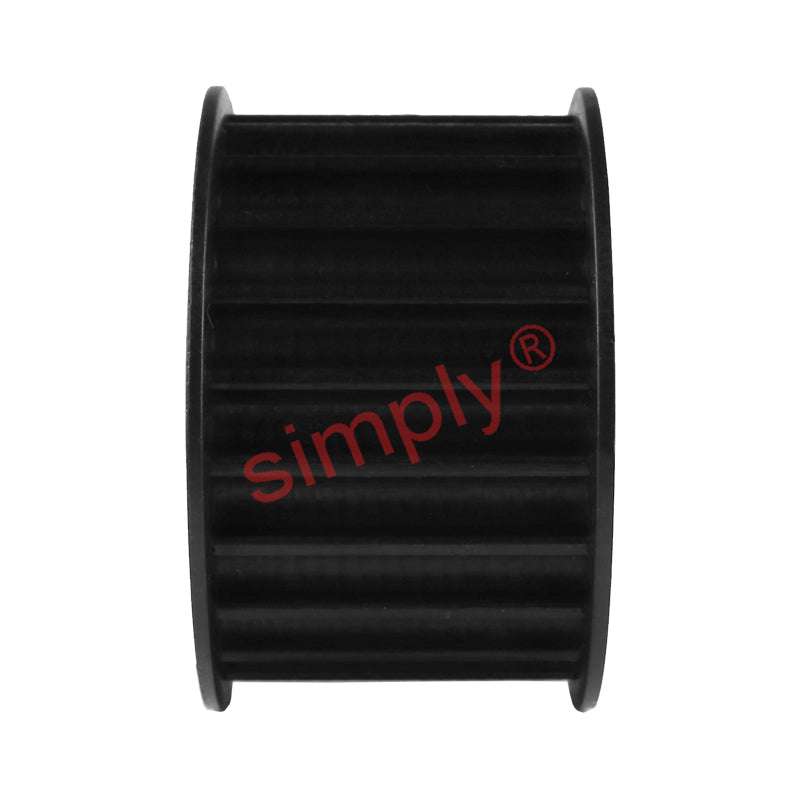

Drive-Flex 228M30F/1008 Toothed Tapered Bore Timing Pulley with 22 Teeth
Drive-Flex 228M30F/1008 Toothed Tapered Bore Timing Pulley with 22 Teeth
Regular price
CHF 13.82
ex VAT
Regular price
Sale price
CHF 13.82
ex VAT
In stock
Price Break
10+
CHF 12.30
19+
CHF 11.61
29+
CHF 11.47
39+
CHF 11.33
49+
CHF 11.19
74+
CHF 11.06
99+
CHF 10.37
199+
CHF 10.23
249+
CHF 10.09
499+
CHF 9.95
999+
CHF 9.67
Couldn't load pickup availability
Description
Description
Toothed Tapered Bore Timing Pulley: This pulley is manufactured in high-quality steel. The efficiency of drives can be affected by the use of worn pulleys and belts. Periodic inspections for debris and belt damage are recommended, replacing where needed, in turn, optimal drive efficiency as well as increased uptime and reduced running costs for your equipment can be achieved.
Benefits: High-Quality, Anti-Corrosive, Cost Effective
- Brand / Quality:
- Drive-Flex - High Quality
- Outside Diameter:
- 62mm
- Width:
- 38mm
- Number of Teeth:
- 22
Technical
Technical

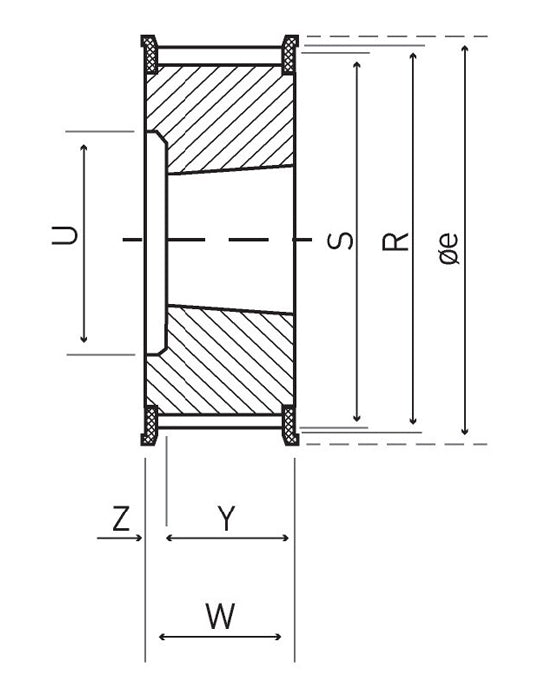

| Number of teeth | 22 |
|---|---|
| Bush Type | 1008 |
| Max Bore | 25mm |
| R | 56.02mm |
| S | 54.65mm |
| 0e | 62mm |
| U | 38mm |
| W | 38mm |
| Y | 16mm |
| Z | 22mm |
| Weight | N/A |
