SKU: 2211.C3.MB
2211C3 Open Self Aligning Ball Bearing 55x100x25mm
2211C3 Open Self Aligning Ball Bearing 55x100x25mm
Regular price
CHF 57.76
ex VAT
Regular price
Sale price
CHF 57.76
ex VAT
In stock
Price Break
10+
CHF 51.41
19+
CHF 48.52
29+
CHF 47.94
39+
CHF 47.36
49+
CHF 46.79
74+
CHF 46.21
99+
CHF 43.32
199+
CHF 42.74
249+
CHF 42.16
499+
CHF 41.59
999+
CHF 40.43
Couldn't load pickup availability
Description
Description
|
Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical

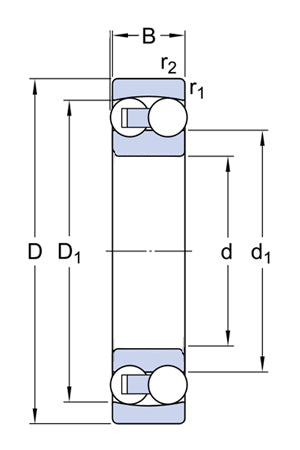

| d | 55 |
|---|---|
| D | 100 |
| B | 25 |
| r1r2 min | 1.5 |
| Dynamic load | 39.2 kn |
| Static load | 13.3 kN |
| Cu | 0.6 kN |
| Reference speed | 6900 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.81kg |
| e | 0.22 |
| Fa/Fr = e | 2.9 |
| Fa/Fr > e | 4.5Y0 |
| 3.1 | N/A |
