SKU: 22211EAW33ZZ-SNR

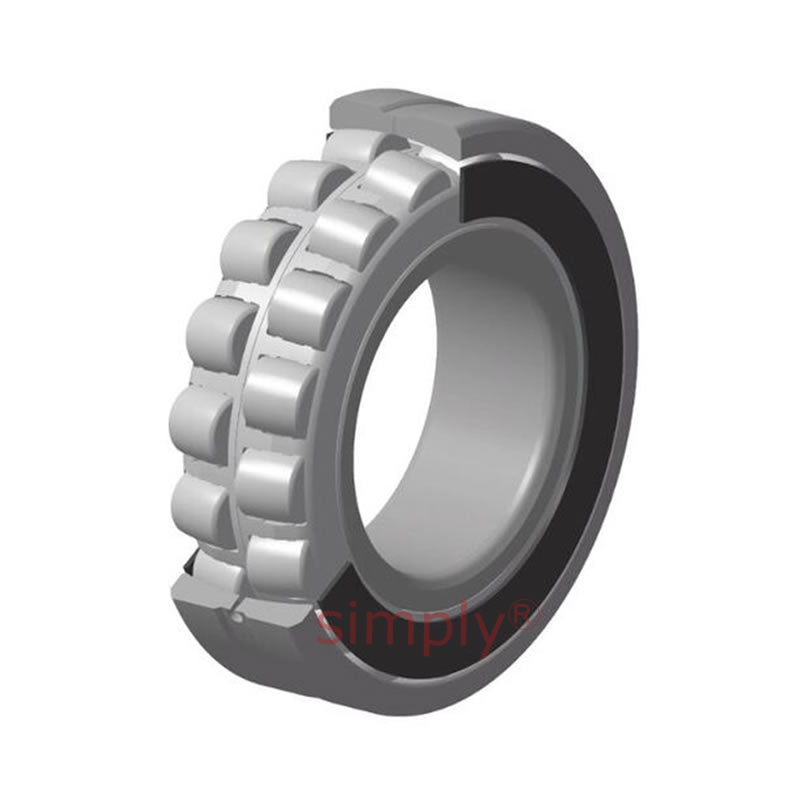

SNR 22211EAW33ZZ Metal Shielded Spherical Roller Bearing with Cylindrical Bore 55x100x25mm Allow 1 - 2 Days

SNR 22211EAW33ZZ Metal Shielded Spherical Roller Bearing with Cylindrical Bore 55x100x25mm Allow 1 - 2 Days
Regular price CHF 131.00 ex VAT
Regular price Sale price CHF 131.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 103.81
5+ CHF 97.98
9+ CHF 96.81
19+ CHF 95.64
49+ CHF 94.48
74+ CHF 93.31
99+ CHF 87.48
199+ CHF 86.31
249+ CHF 85.15
499+ CHF 83.98
999+ CHF 81.65
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 55mm
D 100mm
B 25mm
rs 1.5mm
D1 89.7mm
d2 66mm
b 6.4mm
k 3mm
--- Abutment dimensions
da min 64mm
Da Max 91mm
ra max 1.5mm
Dynamic load Cr 155kN
Static load Cor 148kN
Fatigue load Cu 17.9kn
--- Calculation factors
e 0.23
Y1 2.95
Y2 4.39
YO 2.89
--- Speeds and other information
Reference speed 6100rpm
Limiting speed 8200rpm
Internal clearance min 40μm
Internal clearance max 65μm
Initial grease addition mm<sup>3</sup> 8511
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 0.85kg
