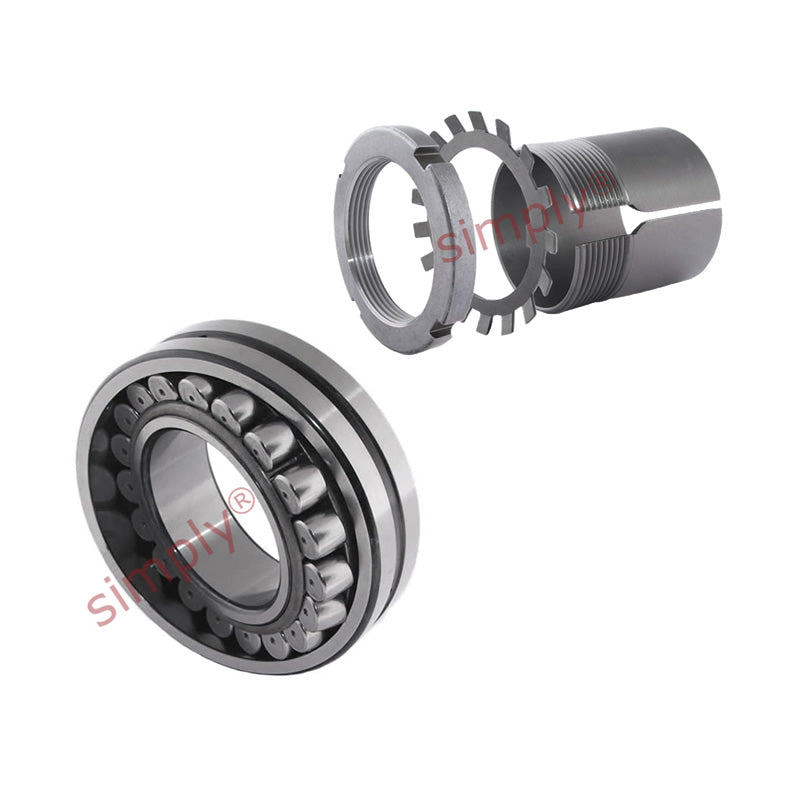

FAG 22310E1K X-life Spherical Roller Bearing with H2310 Adapter Sleeve 45x110x40mm
FAG 22310E1K X-life Spherical Roller Bearing with H2310 Adapter Sleeve 45x110x40mm
Regular price
CHF 129.00
ex VAT
Regular price
Sale price
CHF 129.00
ex VAT
In stock
Price Break
3+
CHF 110.65
4+
CHF 108.34
9+
CHF 106.04
19+
CHF 103.73
29+
CHF 101.43
39+
CHF 99.12
49+
CHF 96.82
59+
CHF 94.51
249+
CHF 92.20
499+
CHF 89.90
999+
CHF 87.59
Description
Description
|
Spherical Roller Bearing with Adapter Sleeve: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. This bearing is supplied with an adapter sleeve. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 110mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1H | 45mm |
|---|---|
| d | 50mm |
| D | 110mm |
| B | 40mm |
| r min | 2mm |
| D1 | 92.6mm |
| d2 | 63mm |
| ds | 3.2mm |
| ns | 6.5mm |
| Dm | 70mm |
| l | 55mm |
| c | 13mm |
| da max | 63mm |
| Da max | 99mm |
| db min | 56mm |
| Ba min | 5mm |
| ra max | 2mm |
| Dynamic load Cr | 229000 N |
| Static load C0r | 223000 N |
| e | 0.36 |
| Y1 | 1.86 |
| Y2 | 2.77 |
| Y0 | 1.82 |
| Fatigue load limit Cur | 20300 N |
| Limiting speed nG | 6000 rpm |
| Reference speed nB | 4800 rpm |
| Bearing weight | 1.86 kg |
| Adapter sleeve weight | 0.353 kg |
