SKU: 22311E-SKF

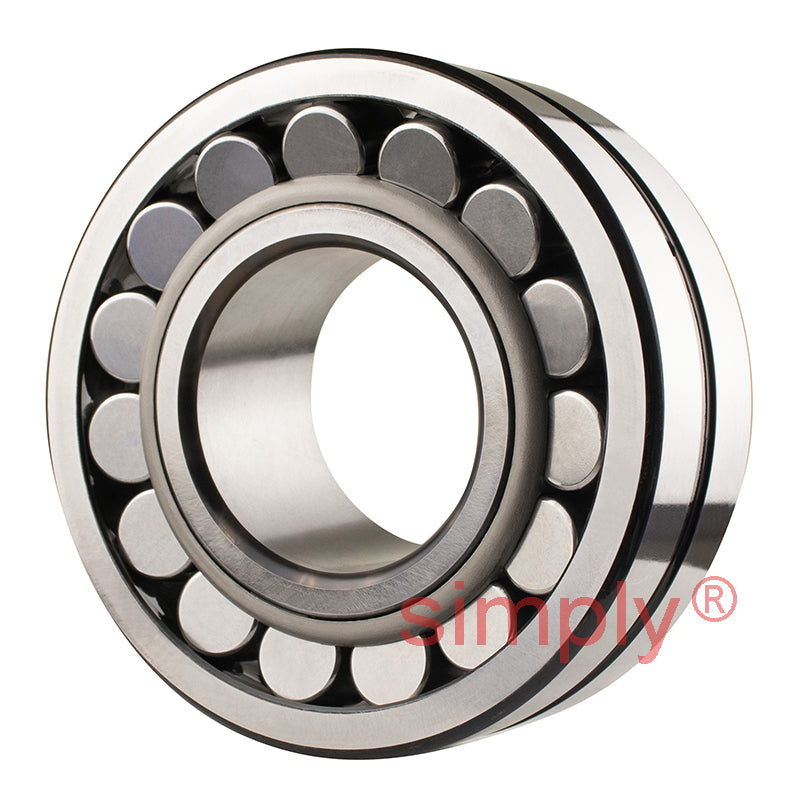

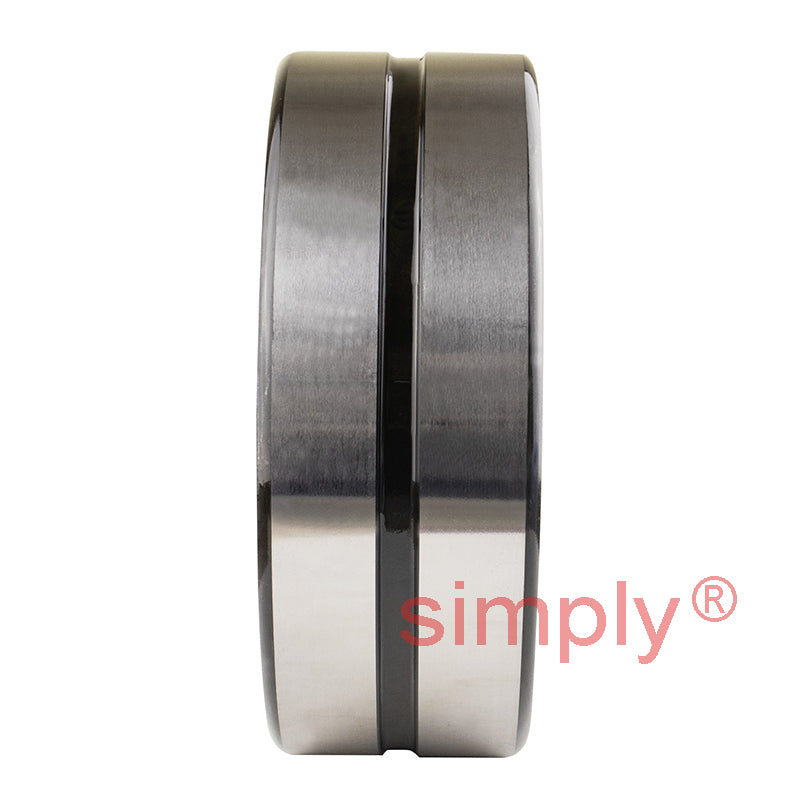

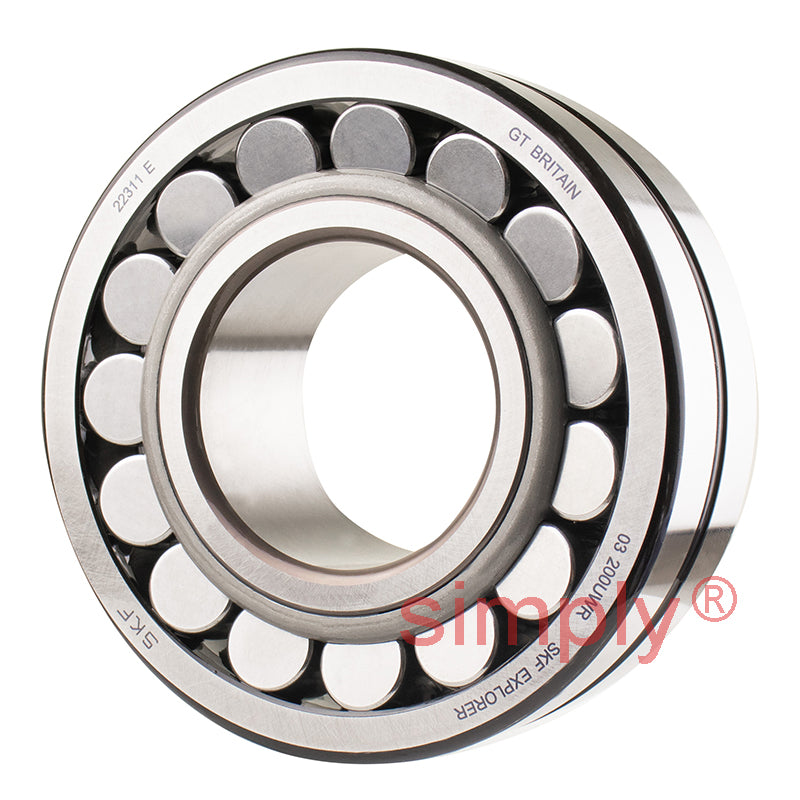

SKF 22311E Spherical Roller Bearing with Cylindrical Bore 55x120x43mm
SKF 22311E Spherical Roller Bearing with Cylindrical Bore 55x120x43mm
Regular price
CHF 167.00
ex VAT
Regular price
Sale price
CHF 167.00
ex VAT
In stock
Price Break
3+
CHF 132.75
4+
CHF 125.29
9+
CHF 123.80
19+
CHF 122.31
29+
CHF 120.82
39+
CHF 119.32
49+
CHF 111.87
59+
CHF 110.37
249+
CHF 108.88
499+
CHF 107.39
999+
CHF 104.41
Share this product
Description
Description
|
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 43mm
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 55mm |
| D | 120mm |
| B | 43mm |
| D1 | 102mm |
| d2 | 70.1mm |
| r1r2 min | 2mm |
| b | 5.5mm |
| K | 3mm |
| da min | 66mm |
| Da max | 109mm |
| ra max | 2mm |
| --- | Speeds, Loads and Weights |
| Dynamic load C | 270 kN |
| Static load Co | 280 kN |
| Fatigue load limit Pu | 30 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 5600 rpm |
| Weight | 2.45 kg |
| --- | Factors |
| Calculation factor e | 0.35 |
| Calculation factor Y1 | 1.9 |
| Calculation factor Y2 | 2.9 |
| Calculation factor Y0 | 1.8 |
