SKU: 22316E/C3-SKF

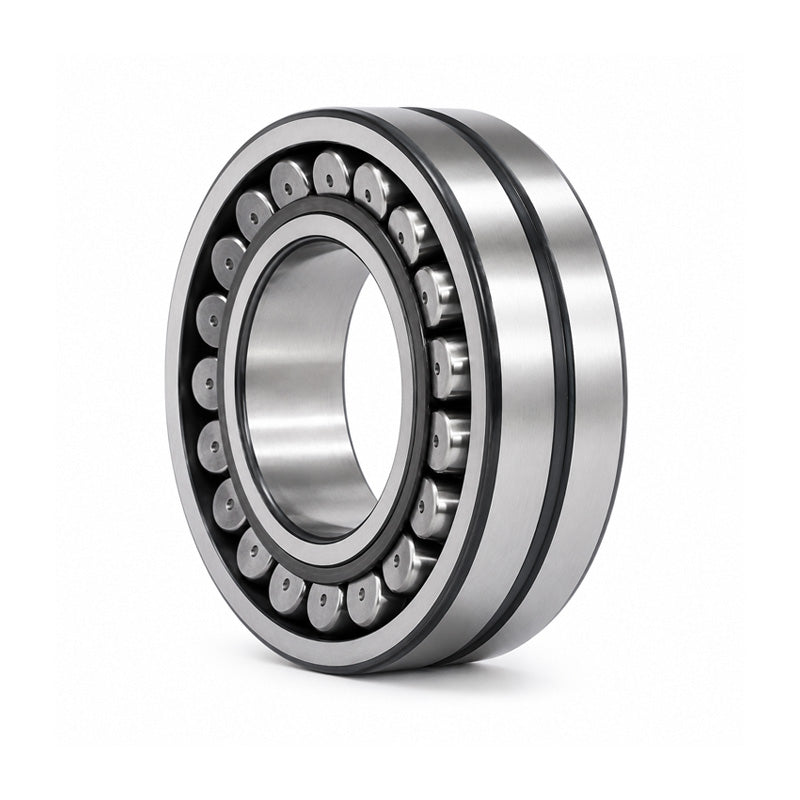

SKF 22316EC3 Spherical Roller Bearing with Cylindrical Bore 80x170x58mm
SKF 22316EC3 Spherical Roller Bearing with Cylindrical Bore 80x170x58mm
Regular price
CHF 348.00
ex VAT
Regular price
Sale price
CHF 348.00
ex VAT
In stock
Price Break
3+
CHF 276.69
4+
CHF 261.15
9+
CHF 258.04
19+
CHF 254.93
29+
CHF 251.82
39+
CHF 248.71
49+
CHF 233.17
59+
CHF 230.06
249+
CHF 226.95
499+
CHF 223.84
999+
CHF 217.62
Share this product
Description
Description
|
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 58mm
- Clearance:
- C3
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 80mm |
| D | 170mm |
| B | 58mm |
| D1 | 143mm |
| d2 | 98.3mm |
| r1r2 min | 2.1mm |
| b | 8.3mm |
| K | 4.5mm |
| da min | 92mm |
| Da max | 158mm |
| ra max | 2mm |
| --- | Speeds, Loads and Weights |
| Dynamic load C | 490 kN |
| Static load Co | 540 kN |
| Fatigue load limit Pu | 54 kN |
| Reference speed | 3000 rpm |
| Limiting speed | 4000 rpm |
| Weight | 6.6 kg |
| --- | Factors |
| Calculation factor e | 0.35 |
| Calculation factor Y1 | 1.9 |
| Calculation factor Y2 | 2.9 |
| Calculation factor Y0 | 1.8 |
