SKU: 22x30x5.7_UIP_NAK

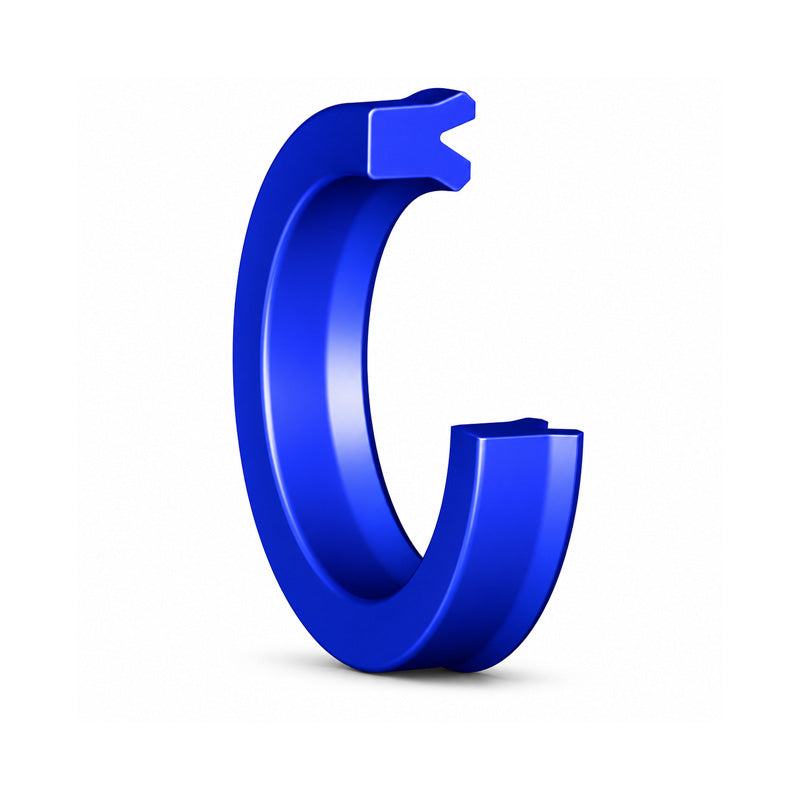

NAK 22x30x5.7mm UIP Polyurethane Rod Seal - Allow 7-10 Days
NAK 22x30x5.7mm UIP Polyurethane Rod Seal - Allow 7-10 Days
Regular price
CHF 4.00
ex VAT
Regular price
Sale price
CHF 4.00
ex VAT
In stock
Price Break
10+
CHF 2.95
19+
CHF 2.78
29+
CHF 2.75
39+
CHF 2.71
49+
CHF 2.68
74+
CHF 2.65
99+
CHF 2.48
199+
CHF 2.45
249+
CHF 2.42
499+
CHF 2.38
999+
CHF 2.32
Description
Description
NAK UIP Rod Seals: The UIP rod seal is a high-performance hydraulic sealing element developed by NAK for demanding rod-end applications. Featuring an asymmetric lip design, it delivers reliable sealing performance while offering enhanced protection against contamination and premature wear.
Benefits: Easy installation, extended operating life, low-friction operation even under high-speed conditions
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 30mm
- Length:
- 5.7mm
- Material:
- Polyurethane
- Style:
- UIP
- Colour:
- Blue
Technical
Technical
| d | 22mm |
|---|---|
| D | 30mm |
| L | 6.4mm |
| h | 5.7mm |
| C | 2mm |
| Inside Diameter Tolerance | f8 |
| Outside Diameter Tolerance | H10 |
| Length Tolerance | 0.2mm |
| Pressure (max) | 40 Mpa |
| Sliding Speed (max) | 0.5 m/s |
| Temperature | -40 Deg C to +100 Deg C |
| Colour | Blue |
