SKU: 23026-E1A-M-FAG

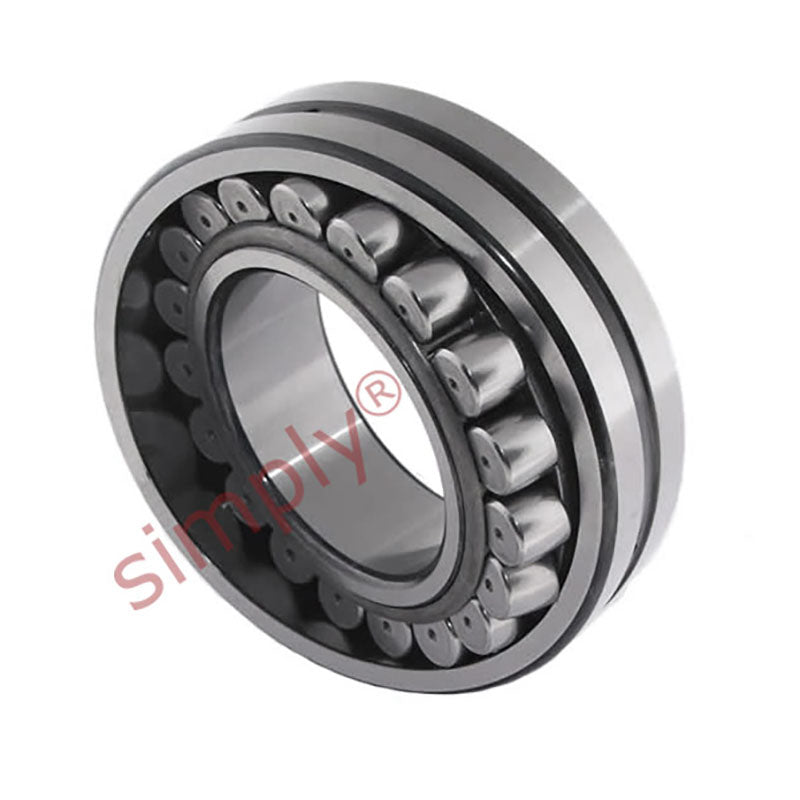

FAG 23026E1AM X-life Spherical Roller Bearing with Cylindrical Bore 130x200x52mm
FAG 23026E1AM X-life Spherical Roller Bearing with Cylindrical Bore 130x200x52mm
Regular price
CHF 521.00
ex VAT
Regular price
Sale price
CHF 521.00
ex VAT
In stock
Price Break
3+
CHF 414.81
4+
CHF 391.51
9+
CHF 386.85
19+
CHF 382.19
29+
CHF 377.52
39+
CHF 372.86
49+
CHF 349.56
59+
CHF 344.90
249+
CHF 340.24
499+
CHF 335.58
999+
CHF 326.26
Description
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 200mm
- Width:
- 52mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 130mm |
| D | 200mm |
| B | 52mm |
| r min. | 2mm |
| D1 | 182.3mm |
| ds | 4.8mm |
| ns | 9.5mm |
| da min. | 138.8mm |
| Da max. | 191.2mm |
| ra max. | 2mm |
| --- | Loads, Speeds and Weights |
| Fatigue limit load | 70000 N |
| Limiting speed | 3600 rpm |
| Reference speed | 2600 rpm |
| Dynamic Load Rating | 540000 N |
| Static Load Rating | 730000 N |
| Weight | 5.96kg |
| --- | Factors |
| e | 0.23 |
| Y1 | 2.95 |
| Y2 | 4.4 |
| Y0 | 2.89 |
