SKU: 23120CC/C3W33-SKF

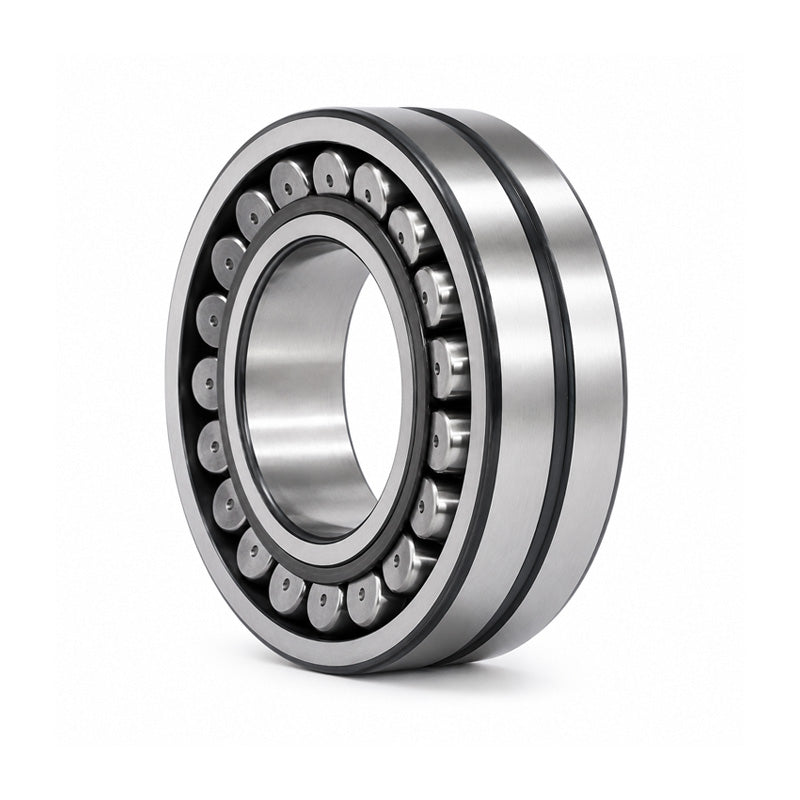

SKF 23120CCC3W33 Spherical Roller Bearing with Cylindrical Bore with Steel Cage 100x165x52mm
SKF 23120CCC3W33 Spherical Roller Bearing with Cylindrical Bore with Steel Cage 100x165x52mm
Regular price
CHF 337.00
ex VAT
Regular price
Sale price
CHF 337.00
ex VAT
In stock
Price Break
3+
CHF 267.98
4+
CHF 252.93
9+
CHF 249.92
19+
CHF 246.91
29+
CHF 243.90
39+
CHF 240.88
49+
CHF 225.83
59+
CHF 222.82
249+
CHF 219.81
499+
CHF 216.80
999+
CHF 210.77
Share this product
Description
Description
|
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 165mm
- Width:
- 52mm
- Clearance:
- C3
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 100mm |
| D | 165mm |
| B | 52mm |
| D1 | 144mm |
| d2 | 115mm |
| r1r2 min | 2mm |
| b | 5.5mm |
| K | 3mm |
| da min | 111mm |
| Da max | 154mm |
| ra max | 2mm |
| --- | Speeds, Loads and Weights |
| Dynamic load C | 365 kN |
| Static load Co | 490 kN |
| Fatigue load limit Pu | 53 kN |
| Reference speed | 3000 rpm |
| Limiting speed | 4000 rpm |
| Weight | 4.55 kg |
| --- | Factors |
| Calculation factor e | 0.3 |
| Calculation factor Y1 | 2.3 |
| Calculation factor Y2 | 3.4 |
| Calculation factor Y0 | 2.2 |
