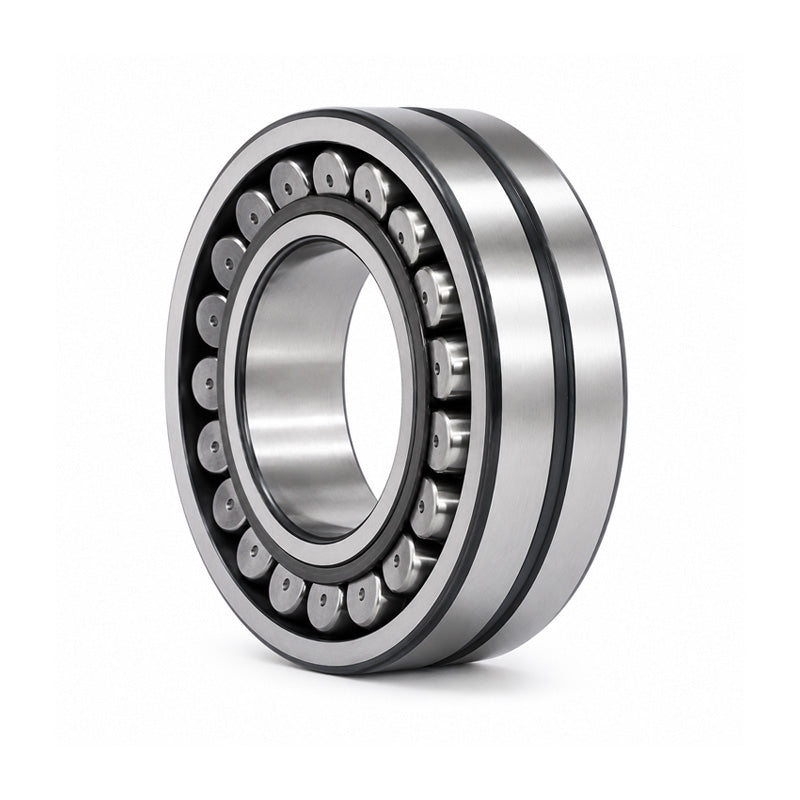

• SKF 23120CCKC3W33 Spherical Roller Bearing with Taper Bore with Steel Cage 100x165x52mm
1 1

SKU: 23120CCK/C3W33-SKF

SKF 23120CCKC3W33 Spherical Roller Bearing with Taper Bore with Steel Cage 100x165x52mm

SKF 23120CCKC3W33 Spherical Roller Bearing with Taper Bore with Steel Cage 100x165x52mm
CHF 346.00 ex VAT
CHF 346.00 ex VAT
Sale Sold out

Equivalent to: 23120KC3

In stock

Price Break
3+ CHF 275.64
4+ CHF 260.15
9+ CHF 257.06
19+ CHF 253.96
29+ CHF 250.86
39+ CHF 247.77
49+ CHF 232.28
59+ CHF 229.18
249+ CHF 226.09
499+ CHF 222.99
999+ CHF 216.80
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options

Equivalent: 23120KC3
Brand / Quality:
SKF - High Quality
Inside Diameter:
100mm
Outside Diameter:
165mm
Width:
52mm
Clearance:
C3
Technical
--- Dimensions
d 100mm
D 165mm
B 52mm
D1 144mm
d2 115mm
r1r2 min 2mm
b 5.5mm
K 3mm
da min 111mm
Da max 154mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic load C 365 kN
Static load Co 490 kN
Fatigue load limit Pu 53 kN
Reference speed 3000 rpm
Limiting speed 4000 rpm
Weight 4.55 kg
--- Factors
Calculation factor e 0.3
Calculation factor Y1 2.3
Calculation factor Y2 3.4
Calculation factor Y0 2.2
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H3120+sleeve>H3120</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE3120+sleeve>HE3120</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX3120+sleeve>AHX3120</a>
