SKU: 23122-EU
Budget 23122 Spherical Roller Bearing with Cylindrical Bore 110x180x56mm
Budget 23122 Spherical Roller Bearing with Cylindrical Bore 110x180x56mm
Regular price
CHF 78.00
ex VAT
Regular price
Sale price
CHF 78.00
ex VAT
In stock
Price Break
10+
CHF 61.83
19+
CHF 58.36
29+
CHF 57.66
39+
CHF 56.97
49+
CHF 56.28
74+
CHF 55.58
99+
CHF 52.11
199+
CHF 51.41
249+
CHF 50.72
499+
CHF 50.02
999+
CHF 48.63
Share this product
Description
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 180mm
- Width:
- 56mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

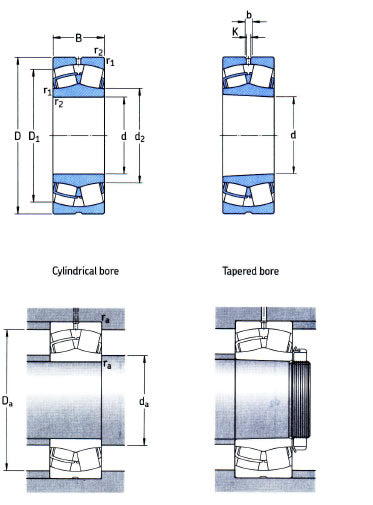

| --- | Dimensions |
|---|---|
| d | 110mm |
| D | 180mm |
| B | 56mm |
| d2 | 126mm |
| D1 | 157mm |
| b | 8.3mm |
| K | 4.5mm |
| r1r2 min | 2mm |
| da min | 121mm |
| Da max | 169mm |
| ra max | 2mm |
| --- | Speeds, Loads and Weights |
| Dynamic Load Rating | 430kN |
| Static Load Rating | 585kN |
| Fatigue Load Limit | 61kN |
| Reference Speed | 2800rpm |
| Limit Speed | 3600rpm |
| Weight | 5.75kg |
| --- | Factors |
| e | 0.3 |
| Y1 | 2.3 |
| Y2 | 3.4 |
| Y0 | 2.2 |
