SKU: 23124-E1-K-TVPB-C3u-FAG

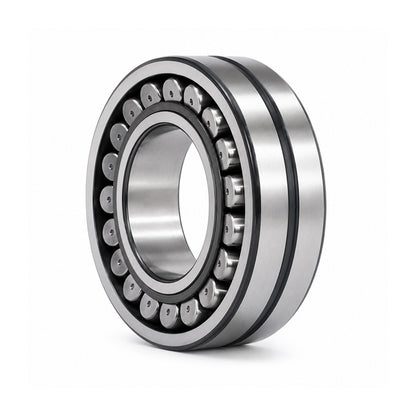

FAG 23124E1KTVPBC3 X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with AHX3124 Withdrawal Sleeve 115x200x62mm
FAG 23124E1KTVPBC3 X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with AHX3124 Withdrawal Sleeve 115x200x62mm
Regular price
CHF 599.26
ex VAT
Regular price
Sale price
CHF 599.26
ex VAT
In stock
Price Break
10+
CHF 533.34
19+
CHF 503.38
29+
CHF 497.39
39+
CHF 491.39
49+
CHF 485.40
74+
CHF 479.41
99+
CHF 449.45
199+
CHF 443.45
249+
CHF 437.46
499+
CHF 431.47
999+
CHF 419.48
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 115mm
- Outside Diameter:
- 200mm
- Width:
- 62mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1H | 115mm |
|---|---|
| d | 120mm |
| D | 200mm |
| B | 62mm |
| r min | 2mm |
| D1 | 177.4mm |
| d2 | 136.2mm |
| ds | 4.8mm |
| ns | 9.5mm |
| a | 4mm |
| b | 12mm |
| Thread d2G | M130X2 |
| l | 75mm |
| da min | 131mm |
| Da max | 189mm |
| ra max | 2mm |
| Dynamic load Cr | 630000 N |
| Static load C0r | 800000 N |
| e | 0.28 |
| Y1 | 2.39 |
| Y2 | 3.56 |
| Y0 | 2.34 |
| Fatigue load limit Cur | 73000 N |
| Limiting speed nG | 3400 rpm |
| Reference speed nB | 2290 rpm |
| Bearing weight | 7.06 kg |
| Withdrawal sleeve weight | 0.954 kg |
