SKU: 23128-E1-K-TVPBu-FAG

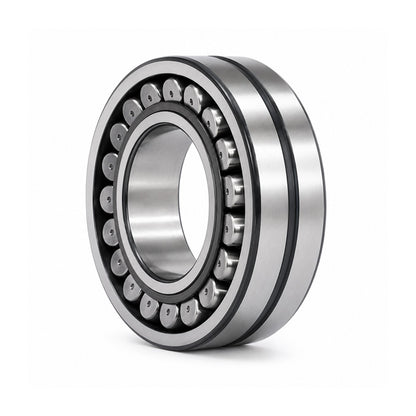

FAG 23128E1KTVPB X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with AHX3128 Withdrawal Sleeve 135x225x68mm
FAG 23128E1KTVPB X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with AHX3128 Withdrawal Sleeve 135x225x68mm
Regular price
CHF 812.38
ex VAT
Regular price
Sale price
CHF 812.38
ex VAT
In stock
Price Break
10+
CHF 723.02
19+
CHF 682.40
29+
CHF 674.28
39+
CHF 666.15
49+
CHF 658.03
74+
CHF 649.90
99+
CHF 609.29
199+
CHF 601.16
249+
CHF 593.04
499+
CHF 584.91
999+
CHF 568.67
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 135mm
- Outside Diameter:
- 225mm
- Width:
- 68mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1H | 135mm |
|---|---|
| d | 140mm |
| D | 225mm |
| B | 68mm |
| r min | 2.1mm |
| D1 | 201mm |
| d2 | 157.1mm |
| ds | 4.8mm |
| ns | 9.5mm |
| a | 5mm |
| b | 14mm |
| Thread d2G | M150X2 |
| l | 83mm |
| da min | 152mm |
| Da max | 213mm |
| ra max | 2.1mm |
| Dynamic load Cr | 760000 N |
| Static load C0r | 1010000 N |
| e | 0.27 |
| Y1 | 2.49 |
| Y2 | 3.71 |
| Y0 | 2.43 |
| Fatigue load limit Cur | 88000 N |
| Limiting speed nG | 2800 rpm |
| Reference speed nB | 1930 rpm |
| Bearing weight | 9.46 kg |
| Withdrawal sleeve weight | 1.28 kg |
